Problem #$4$:

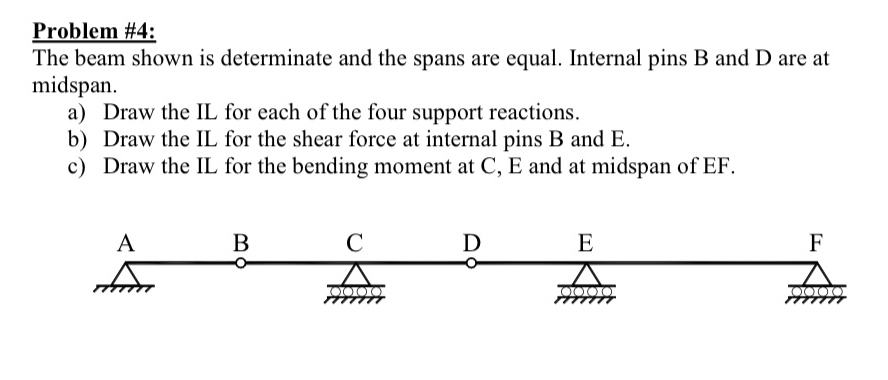

The beam shown is determinate and the spans are equal. Internal pins B and D are at

midspan.

a$)$ Draw the IL for each of the four support reactions.

b$)$ Draw the IL for the shear force at internal pins B and E$.$

c$)$ Draw the IL for the bending moment at C$,$ E and at midspan of EF$.$
