Question: Problem 4 ) The toggle clamp requires 1 0 0 lb of clamping force applied at E . Determine the force F needed to supply

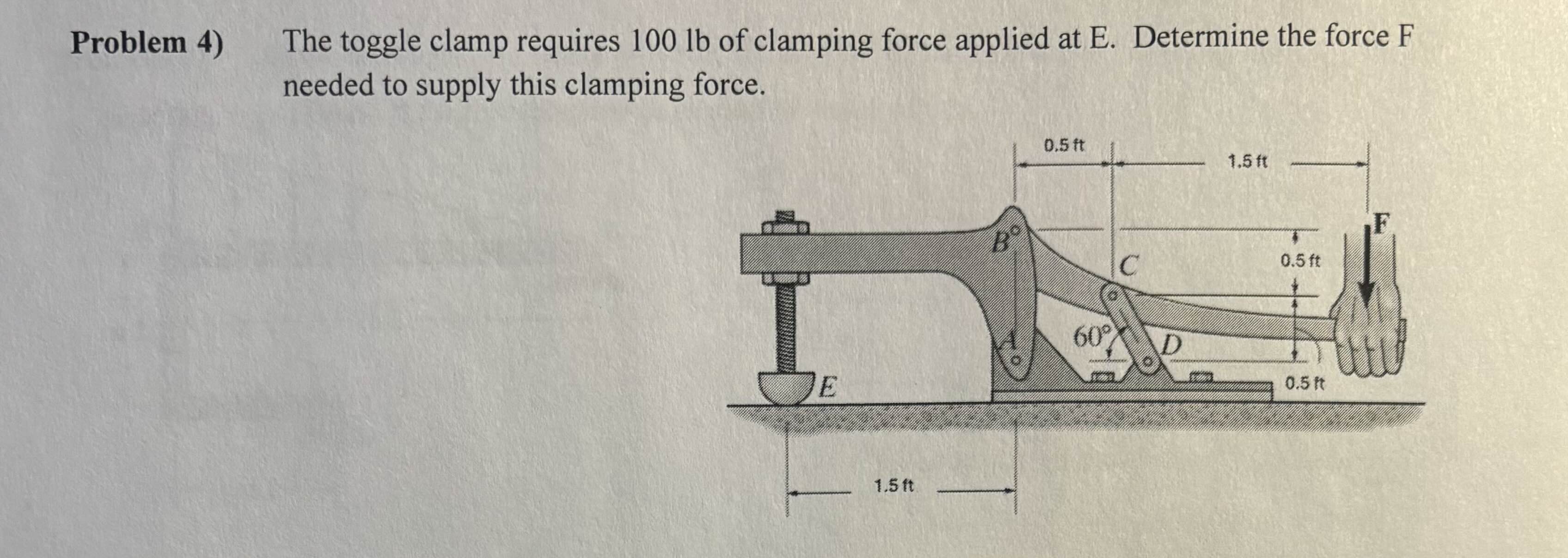

Problem 4) The toggle clamp requires 100 lb of clamping force applied at E. Determine the force F needed to supply this clamping force.
Problem 4 ) The toggle clamp requires 1 0 0 lb of
