Question: Problem 4 . ( Topic Areas # 1 , 3 , 4 , 6 ) For the column, draw axial, shear, and moment diagrams. Determine

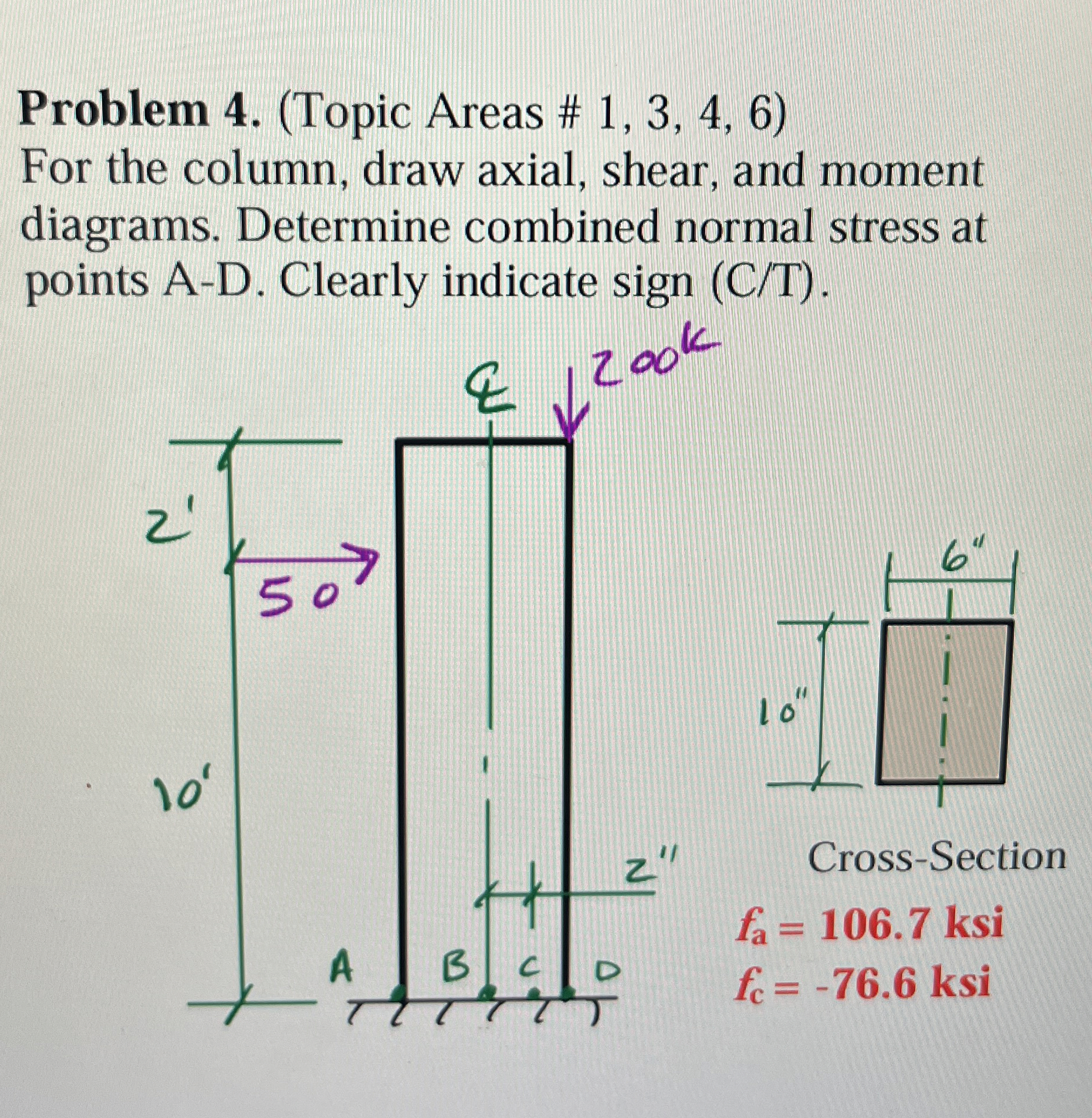

Problem 4.(Topic Areas # 1,3,4,6) For the column, draw axial, shear, and moment diagrams. Determine combined normal stress at points A-D. Clearly indicate sign (C/T).
Problem 4 . ( Topic Areas # 1 , 3 , 4 , 6 ) For

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
