Question: Problem 4 Using Superposition, determine the power consumed by resistance R in the circuit shown below assuming R = 2 0 0 ( Hint: determine

Problem 4

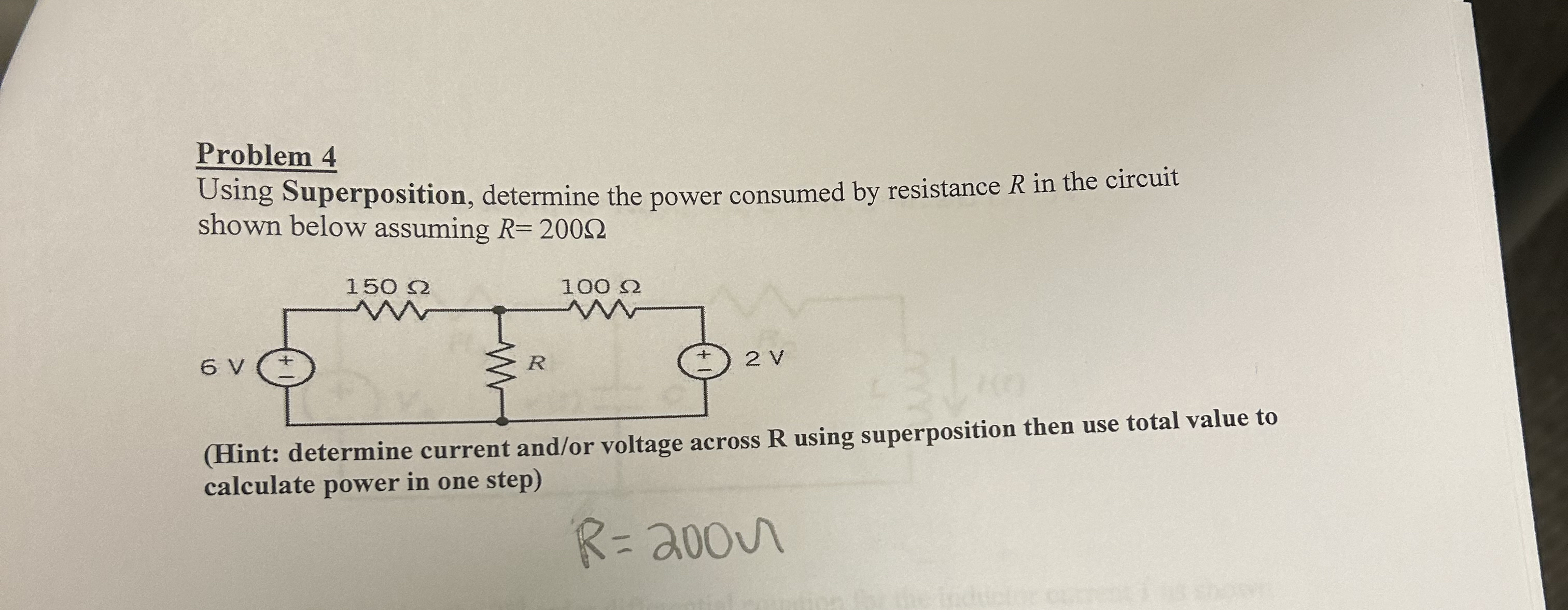

Using Superposition, determine the power consumed by resistance R in the circuit shown below assuming R=200
(Hint: determine current and/or voltage across K usimy superposition then use total value to calculate power in one step)
=200n
Problem 4 Using Superposition, determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
