Question: Problem 5 ( 1 5 points ) : Determine the reactions at the fixed end A of the beam. Draw a free - body diagram,

Problem 5(15 points):

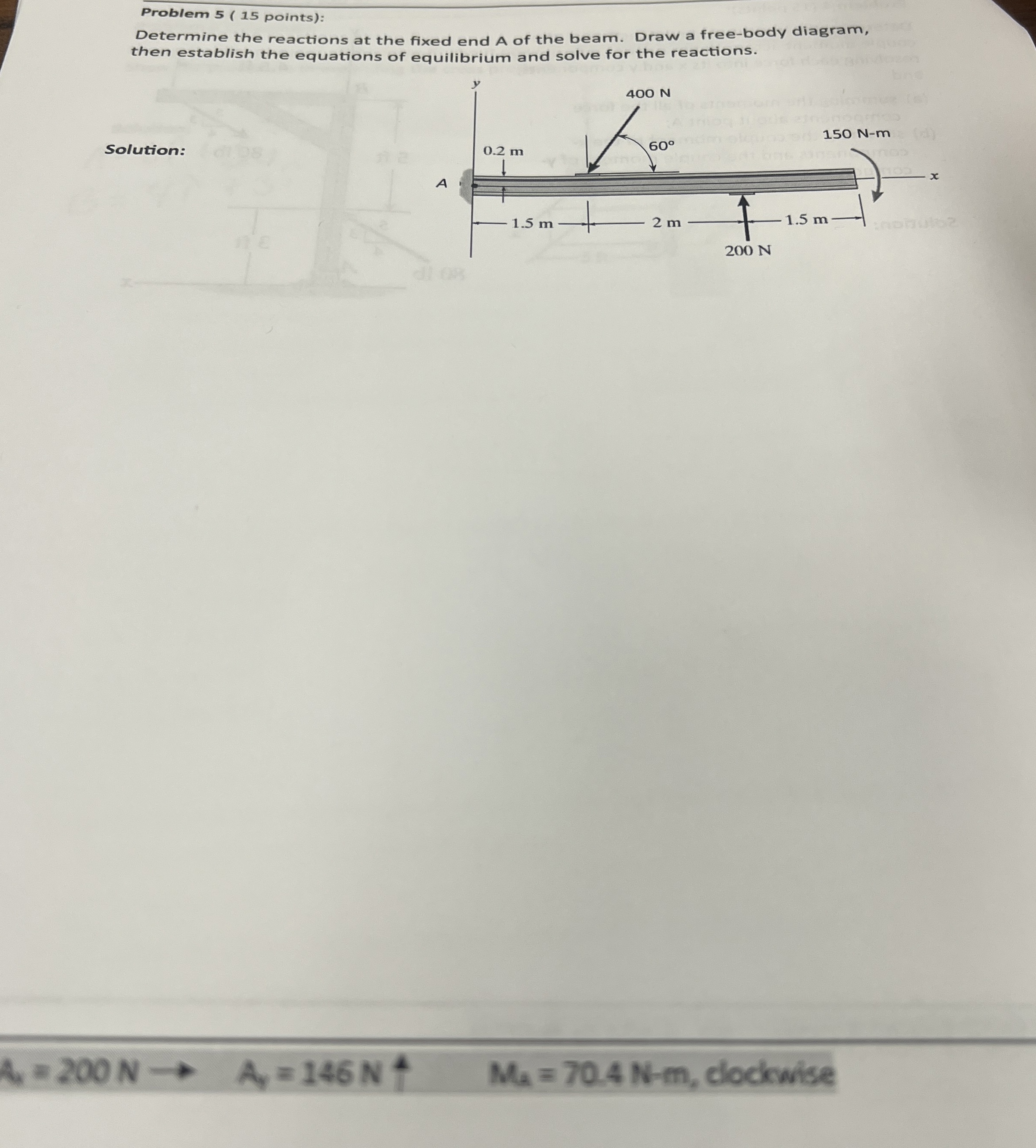

Determine the reactions at the fixed end A of the beam. Draw a free-body diagram, then establish the equations of equilibrium and solve for the reactions.
Solution:
Problem 5 ( 1 5 points ) : Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
