Question: Problem 5 : ( 1 5 Points ) For the beam below, E = 2 9 x 1 0 6 , I = 1 8

Problem 5: (15 Points)

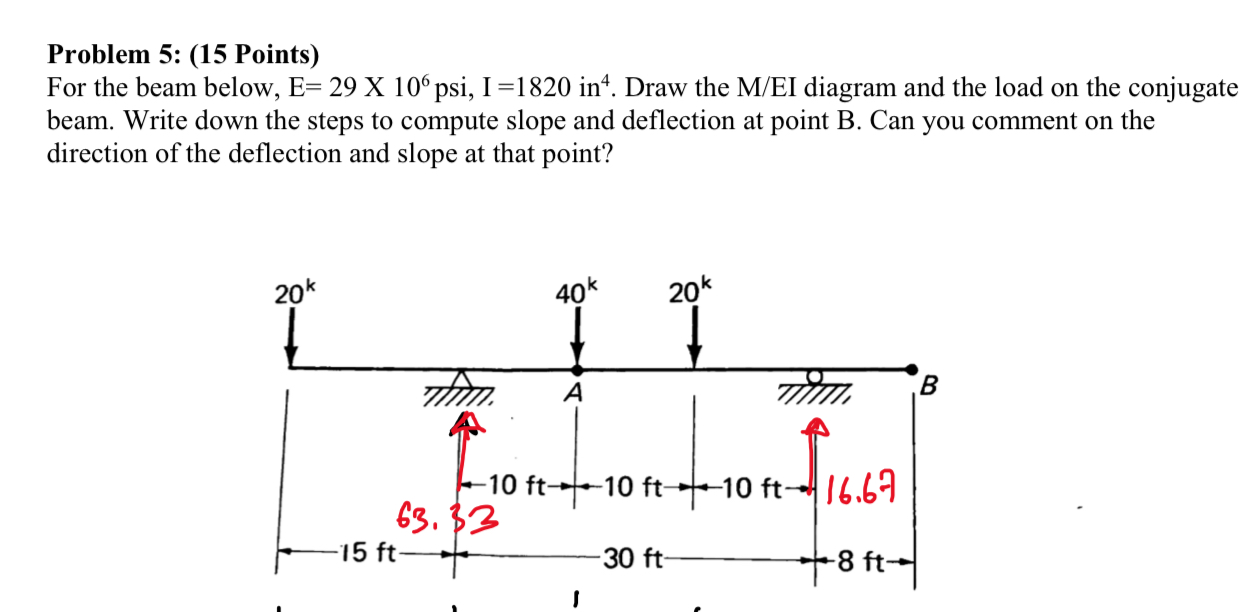

For the beam below, E=29x106,I=1820in4. Draw the MEI diagram and the load on the conjugate beam. Write down the steps to compute slope and deflection at point B. Can you comment on the direction of the deflection and slope at that point?
Problem 5 : ( 1 5 Points ) For the beam below, E

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
