Question: Problem 5 ) ( 2 0 points ) Determine the force in each member of the truss. State if the members are in tension or

Problem

5) (20

points

)

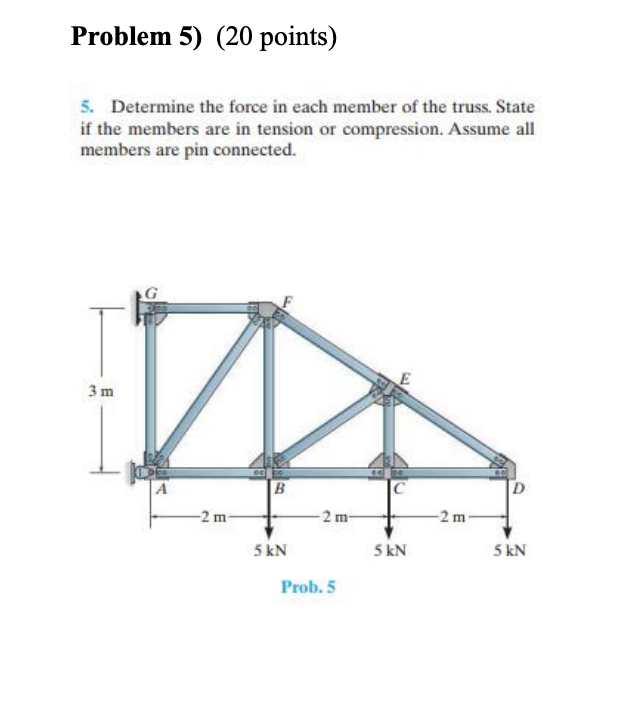

Determine the force in each member of the truss. State

if the members are in tension or compression. Assume all

members are pin connected.

Prob.

5

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

To determine the forces in each member of the truss and whether they are in tension or compression we can use the method of joints First we must calcu... View full answer
