Question: Problem 5 ( 2 0 pts ) A rigid wire carrying a current I consists of a semicircle of radius R and two horizontal straight

Problem 5(20 pts)

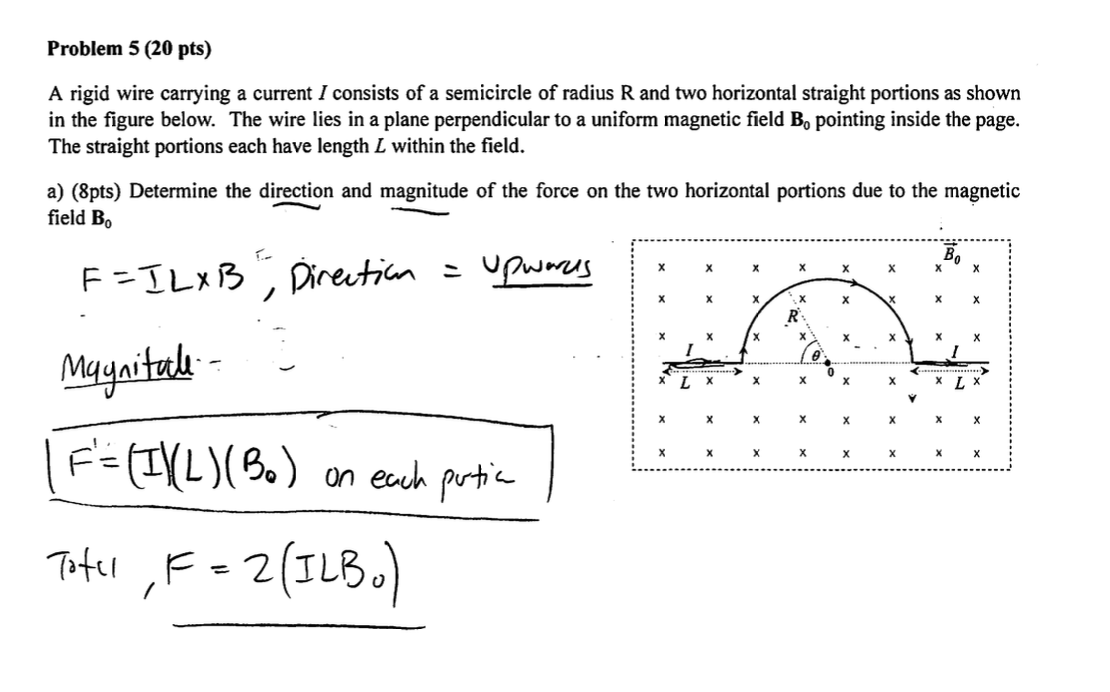

A rigid wire carrying a current I consists of a semicircle of radius R and two horizontal straight portions as shown
in the figure below. The wire lies in a plane perpendicular to a uniform magnetic field B_(0) pointing inside the page.
The straight portions each have length L within the field.
aB_(0)
F=IL\times B^(2), Direction = upumus
Magnitode
F^(')=(I)(L)(B_(0)) on each putic
Totul, F=2(ILB_(0))
Problem 5 ( 2 0 pts ) A rigid wire carrying a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
