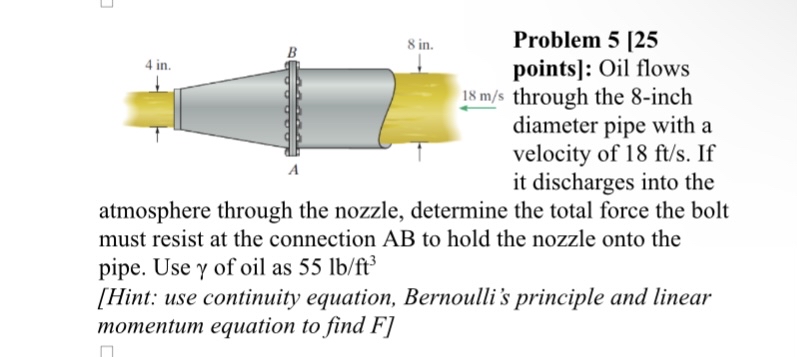

Question: Problem 5 [ 2 5 points ] : Oil flows through the 8 - inch diameter pipe with a velocity of 1 8 f t

Problem

5 [25

points

]

: Oil flows through the

8 -

inch diameter pipe with a velocity of

18 f \frac{t}{s} .

If it discharges into the atmosphere through the nozzle, determine the total force the bolt must resist at the connection AB to hold the nozzle onto the pipe. Use

of oil as

55 l \frac{b}{f} t^{3}

[

Hint: use continuity equation, Bernoulli's principle and linear momentum equation to find

F

Problem 5 [ 2 5 points ] : Oil flows through the
