Question: Problem 5 . 2 5 The solid shaft is subjected to the distributed and concentrated torsional loadings shown, where T = 7 5 0 N

Problem 5.25

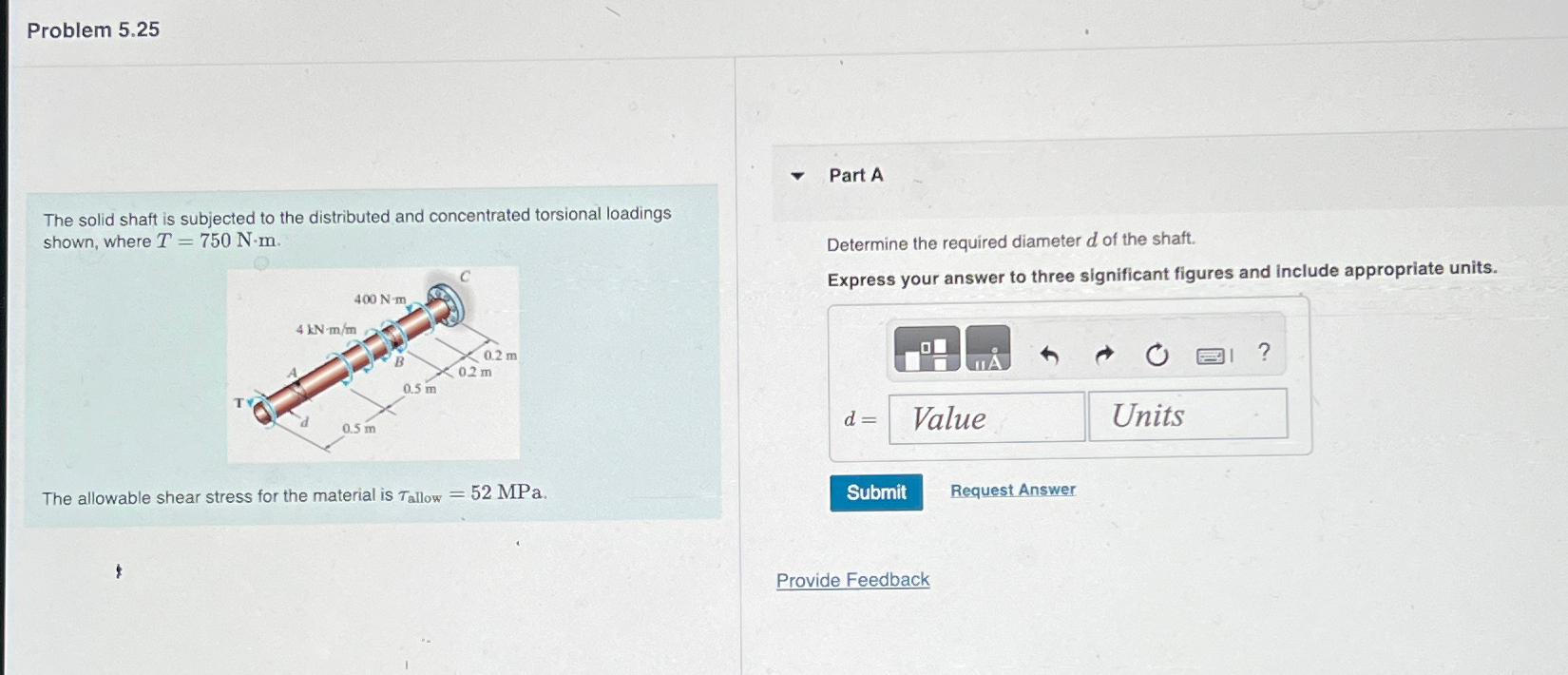

The solid shaft is subjected to the distributed and concentrated torsional loadings shown, where T=750N*m.
Part A
Determine the required diameter d of the shaft.
Express your answer to three significant figures and include appropriate units.
d=
The allowable shear stress for the material is allow=52MPa.
Request Answer
Provide Feedback
Problem 5 . 2 5 The solid shaft is subjected to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
