Question: PROBLEM 5 . 3 0 5 . 3 1 Determine the pin reactions at pins A , B , and C in the frame shown.

PROBLEM 5.30

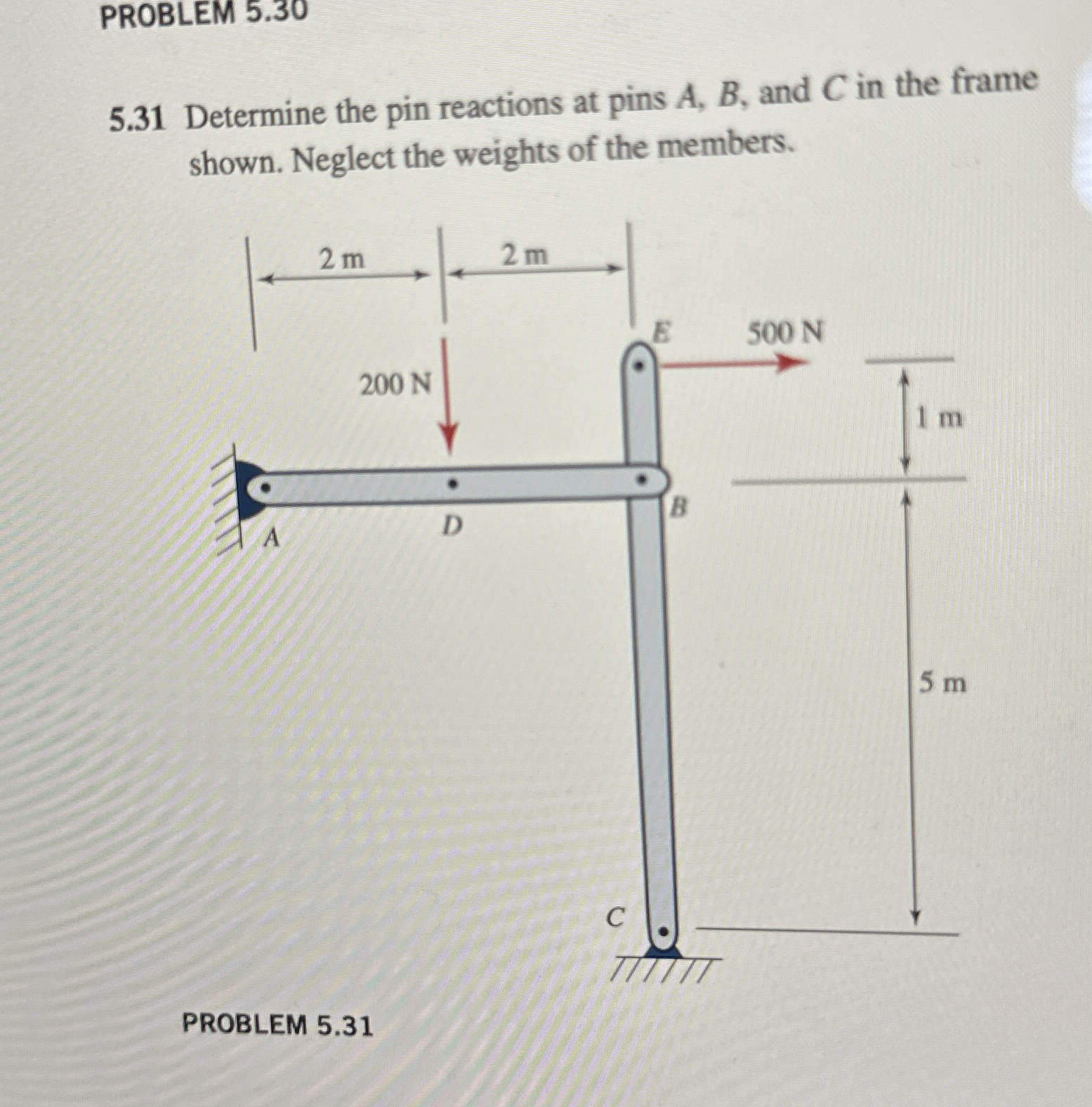

5.31 Determine the pin reactions at pins A,B, and C in the frame shown. Neglect the weights of the members. Use the information given to create a pin reactions table. Do an analysis on member CE first.
PROBLEM 5.31
PROBLEM 5 . 3 0 5 . 3 1 Determine the pin

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
