Question: Problem 5 ( 3 0 Marks ) The shaft shown in the figure is machined from AISI 1 0 4 0 CD steel. The shaft

Problem

5 (30

Marks

)

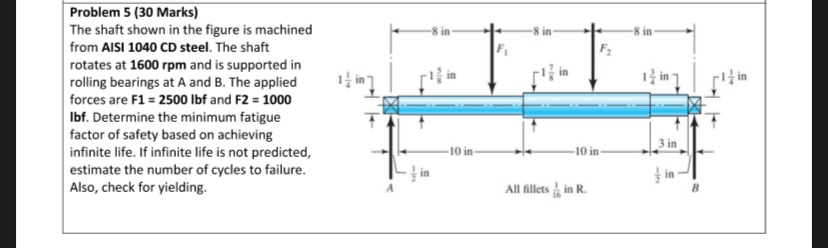

The shaft shown in the figure is machined from AISI

1040

CD steel. The shaft rotates at

1600 r p m

and is supported in rolling bearings at A and B

.

The applied forces are

F 1 = 2500 l b f

and

F 2 = 1000

lbf

.

Determine the minimum fatigue factor of safety based on achieving infinite life. If infinite life is not predicted, estimate the number of cycles to failure. Also, check for yielding.

Problem 5 ( 3 0 Marks ) The shaft shown in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Problem 5 ( 3 0 Marks ) The shaft shown in the figure is machined from AISI \ ( \ mathbf { 1 0 4 0 } \ ) CD steel. The shaft rotates at \ ( \ mathbf { 1 6 0 0 } \ mathbf { ~ r p m } \ ) and is...

Required Information Problem 0 6 . 0 1 7 - The rotating shaft is machined from AISI 1 0 4 0 CD steel The shaft shown in the figure is machined from AISI 1 0 4 0 CD steel. The shaft rotates at 1 6 0 0...

Problem 0 6 . 0 1 7 - The rotating shaft is machined from AISI 1 0 4 0 CD steel The shaft shown in the figure is machined from AISI 1 0 4 0 CD steel. The shaft rotates at 1 6 0 0 rpm and is supported...

Problem 1 (40 Marks) The shaft shown in the figure below is machined from AISI 1040 CD steel. The shaft rotates at 1600 rpm and is supported in rolling bearings at A and B, where the reaction forces:...

Problem 1 . The shaft shown in the figure is machined from AISI 1 0 3 0 CD steel. The shaft rotates at 9 0 0 rpm and is supported in rolling bearings at positions D and K . The applied forces are F B...

Problem 2 . The shaft shown in the figure is machined from AISI 1 0 3 0 CD steel. The shaft rotates at 9 0 0 rpm and is supported in rolling bearings at position I and 2 . The applied forces are F =...

The steel shaft has constant circular cross - section with a diameter of 1 inch and its length is 2 0 inch. The shaft is supported by two bearings at both ends and the bearings exert only vertical...

The ropating shaft shown in the figure is machined from AISI 1 0 4 0 CD steel, S y = 7 1 ksi, S S = 8 5 ksi. The shaft rotates at 1 6 0 0 rpm and is supported in rolling bearings at A and B . The...

6-17 The shaft shown in the figure is machined from AISI 1040 CD steel. The shaft rotates at 1600 rpm and is supported in rolling bearings at A and B. The applied forces are F = 2500 lbf and F2 =...

6 - 1 7 The shaft shown in the figure is machined from AISI 1 0 4 0 CD steel. The shaft rotates at 1 6 0 0 rpm and is supported in rolling bearings at A and B . The applied forces are F 1 = 2 5 0 0 l...
