problem 5

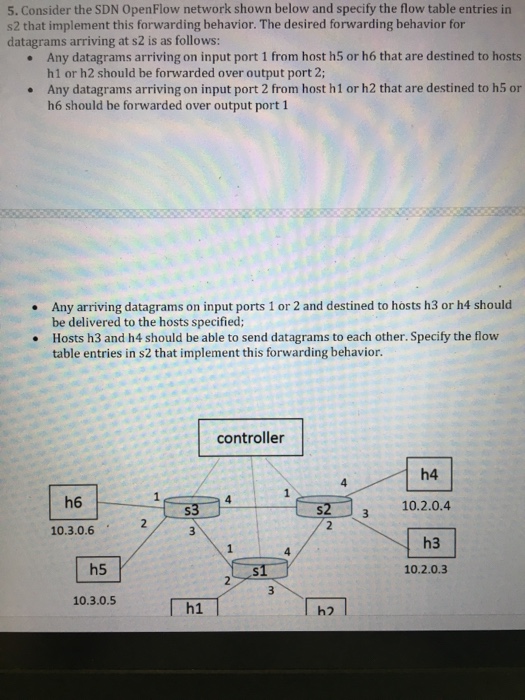

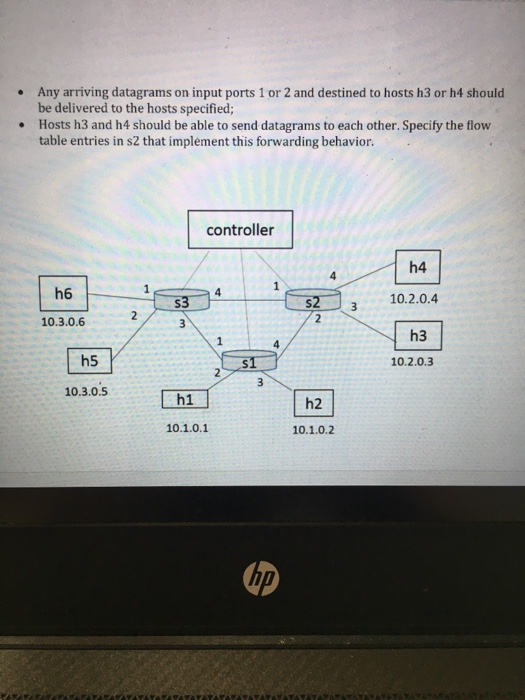

5. Consider the SDN OpenFlow network shown below and specify the flow table entries in s2 that implement this forwarding behavior. The desired forwarding behavior for datagrams arriving at s2 is as follows Any datagrams arriving on input port 1 from host h5 or h6 that are destined to hosts h1 or h2 should be forwarded over output port 2; Any datagrams arriving on input port 2 from host h1 or h2 that are destined to h5 or h6 should be forwarded over output port 1 Any arriving datagrams on input ports 1 or 2 and destined to hosts h3 or h4 should be delivered to the hosts specified; Hosts h3 and h4 should be able to send datagrams to each other.Specify the flow table entries in s2 that implement this forwarding behavior. controller h4 h6 3 10.2.0.4 10.3.0.6 h3 h5 10.2.0.3 10.3.0.5 h1 h2
