Question: Problem 5 : A 2 ft long 4 inch diameter rod has the following stress strain diagram as shown below. If the elongation of the

Problem 5:

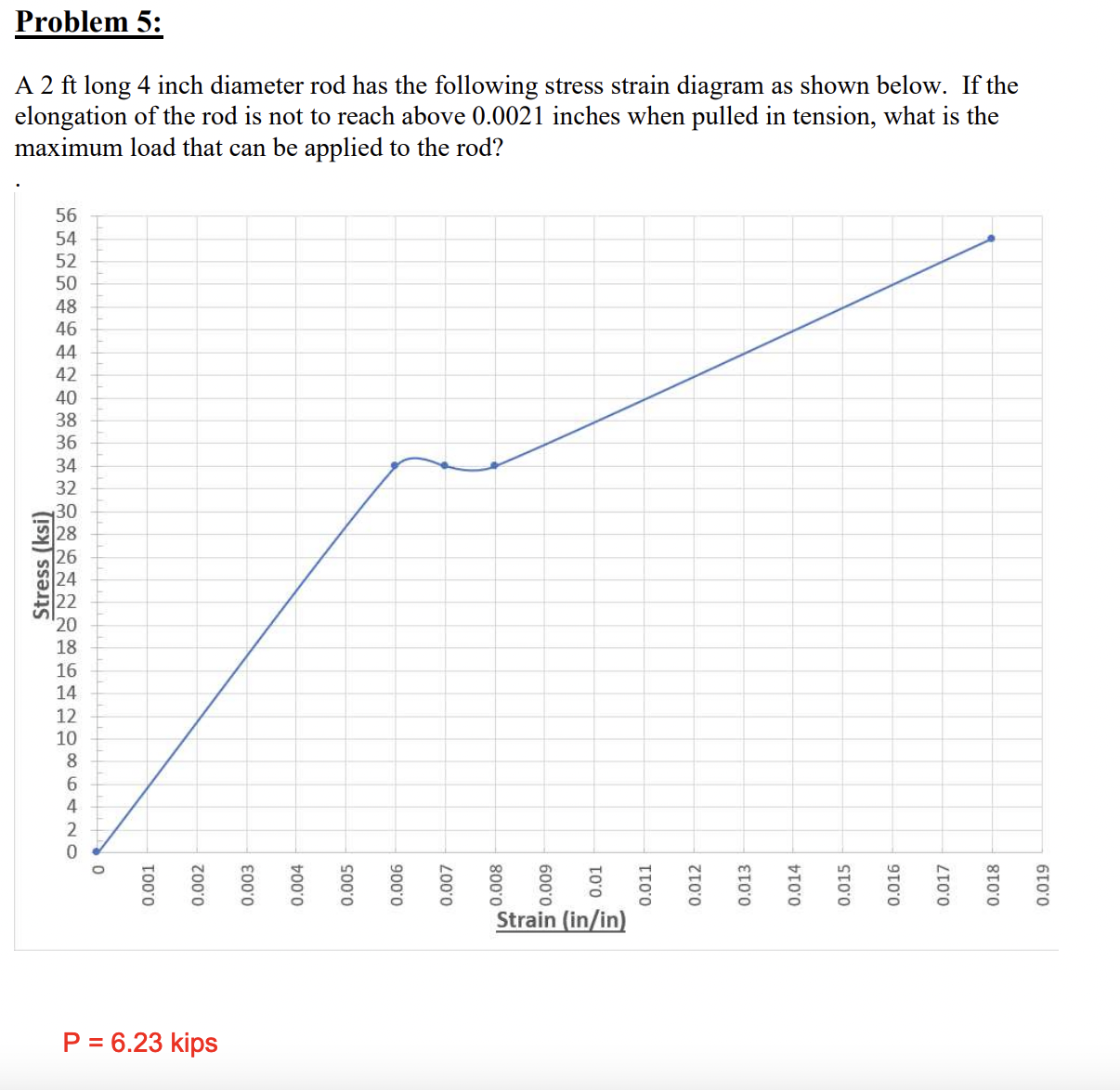

A 2 ft long 4 inch diameter rod has the following stress strain diagram as shown below. If the
elongation of the rod is not to reach above 0.0021 inches when pulled in tension, what is the
maximum load that can be applied to the rod?
P=6.23kips
Problem 5 : A 2 ft long 4 inch diameter rod has

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
