Question: Problem 5 An athlete performs a leg extension exercise on a machine. The free body diagram of his lower leg and foot is shown below.

Problem 5

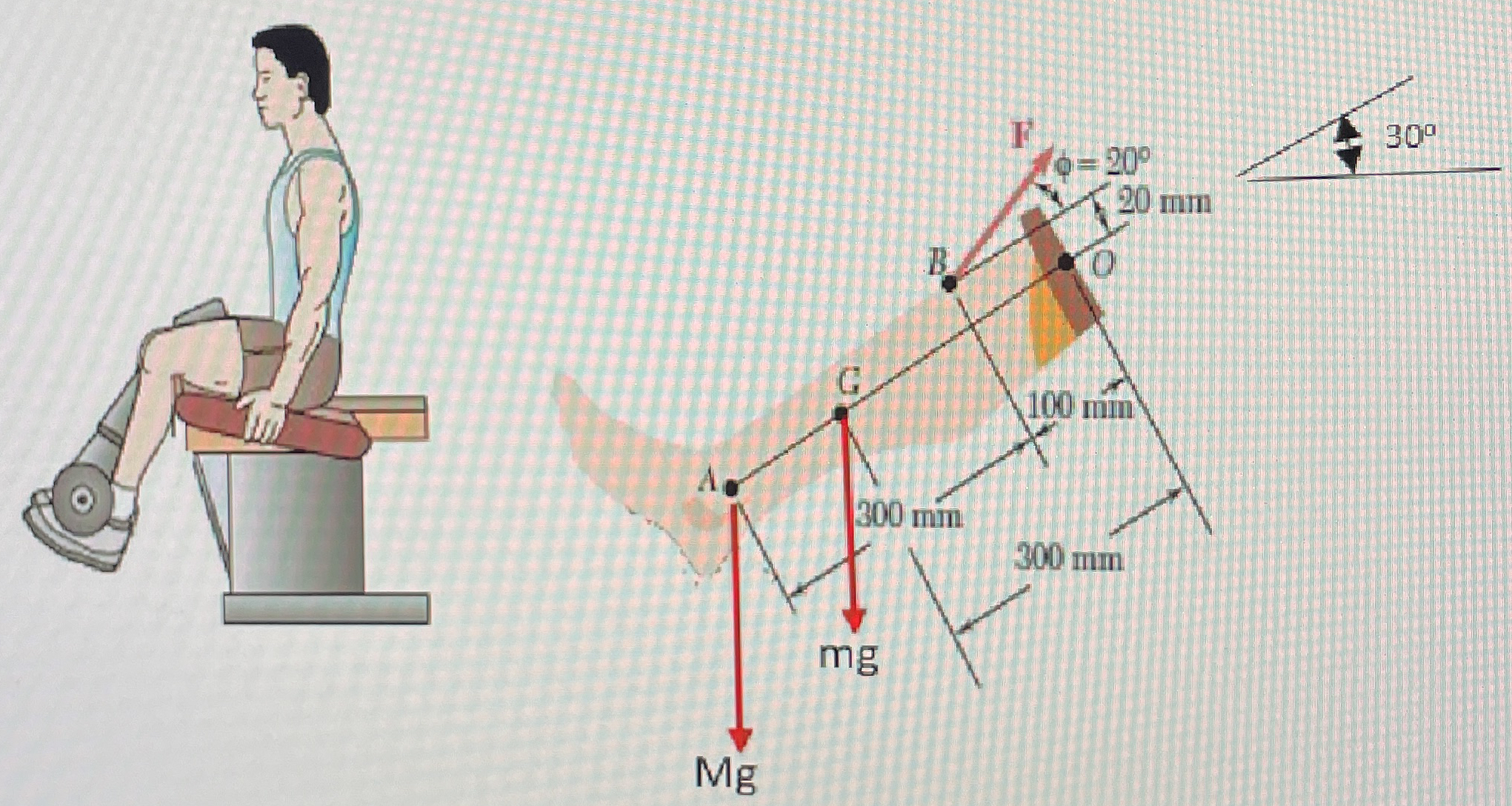

An athlete performs a leg extension exercise on a machine. The free body diagram of his lower leg and foot is shown below. Knowing that,
M : mass of the lifted weight =20kg
m : mass of both lower leg and foot =5kg
Estimate the force (F) in the patella tendon.
Problem 5 An athlete performs a leg extension

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
