Question: Problem 5 (Basic Computer Design) In this question we use the microarchitecture presented in class. Let us use the tables given in the class video

Problem 5 (Basic Computer Design) In this question we use the

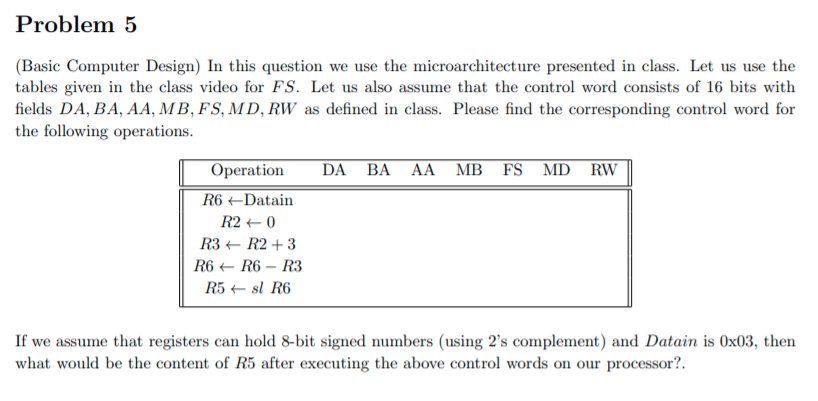

Problem 5 (Basic Computer Design) In this question we use the microarchitecture presented in class. Let us use the tables given in the class video for FS. Let us also assume that the control word consists of 16 bits with fields DA, BA, AA, MB, FS, MD, RW as defined in class. Please find the corresponding control word for the following operations. Operation DA BA AA MB FS MD RW R6 Datain R20 R3 R2 +3 R6 + R6 - R3 R5 sl R6 If we assume that registers can hold 8-bit signed numbers (using 2's complement) and Datain is 0x03, then what would be the content of R5 after executing the above control words on our processor

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
