Question: PROBLEM 5 Determine the force in members CE , EF , HF , and CF , and state whether the force is tension or compression.

PROBLEM 5

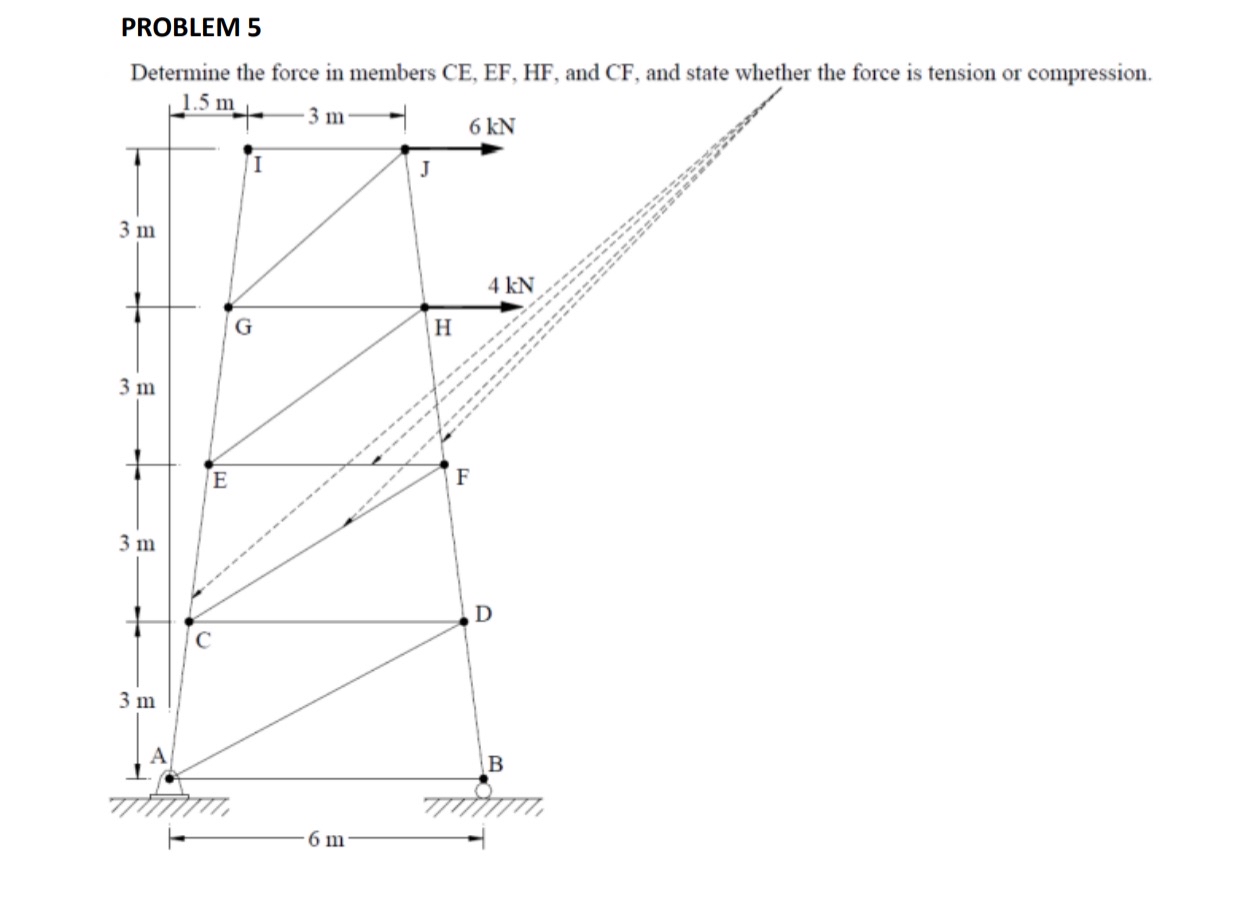

Determine the force in members CE, EF, HF, and CF, and state whether the force is tension or compression.
PROBLEM 5 Determine the force in members CE , EF

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
