Question: Problem # 5 Determine the magnitude and coordinate direction angles , , of the resultant force acting on the pole. Set x = 4 m

Problem #5

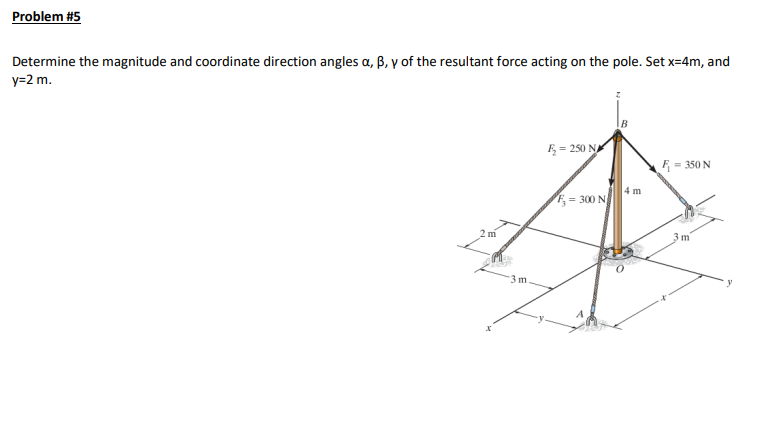

Determine the magnitude and coordinate direction angles ,, of the resultant force acting on the pole. Set x=4m, and
y=2m.
Problem # 5 Determine the magnitude and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
