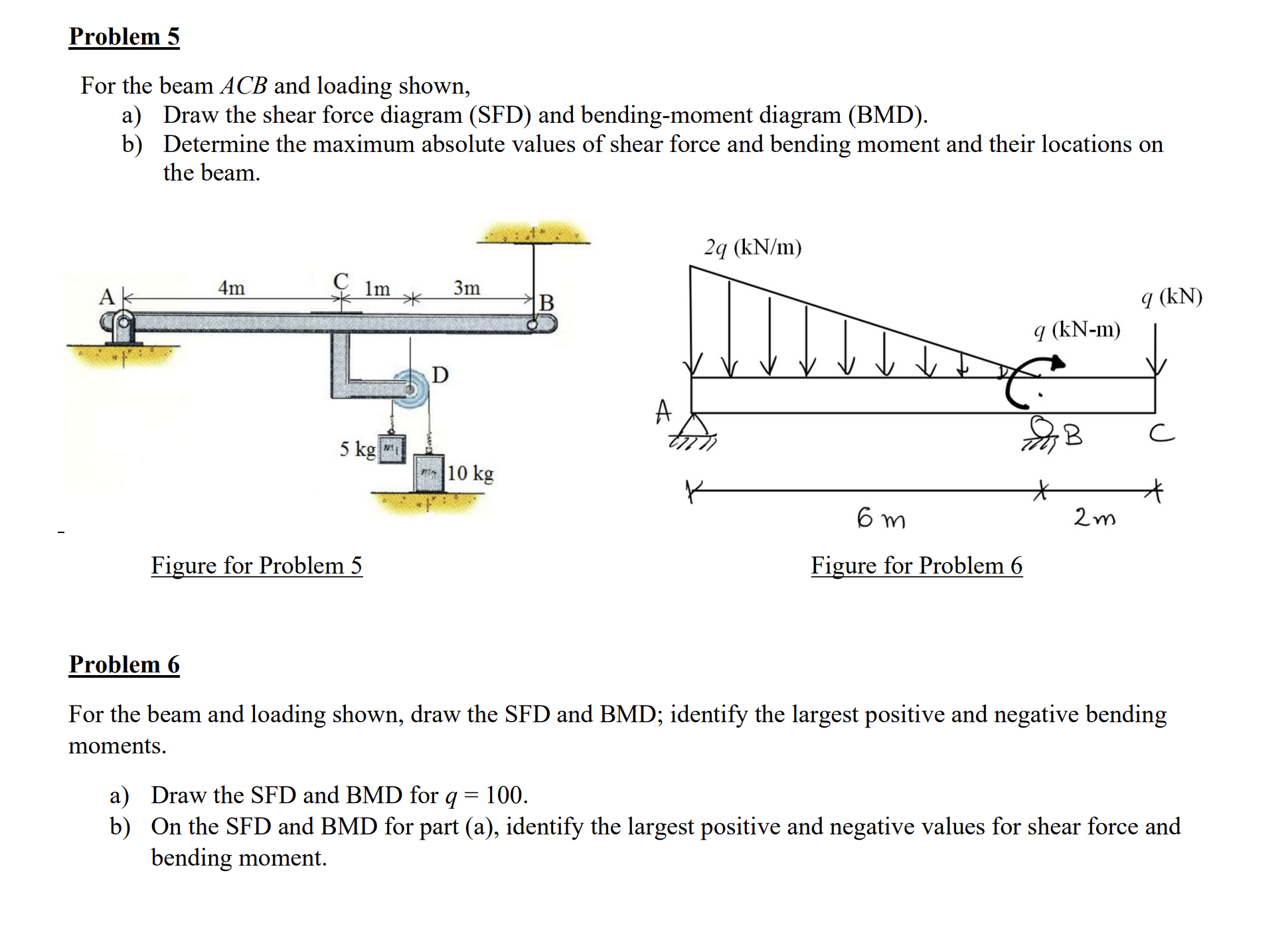

Problem $5$

For the beam $\backslash ($ A C B $\backslash )$ and loading shown,

a$)$ Draw the shear force diagram $($SFD$)$ and bending$-$moment diagram $($BMD$).$

b$)$ Determine the maximum absolute values of shear force and bending moment and their locations on the beam.

Problem $6$

For the beam and loading shown, draw the SFD and BMD; identify the largest positive and negative bending moments.

a$)$ Draw the SFD and BMD for $\backslash ($ q$=100\backslash ).$

b$)$ On the SFD and BMD for part $($a$),$ identify the largest positive and negative values for shear force and bending moment.
