Question: Problem 5 . If cable A B is subjected to a tension of 7 1 0 N , determine the tension in cable A C

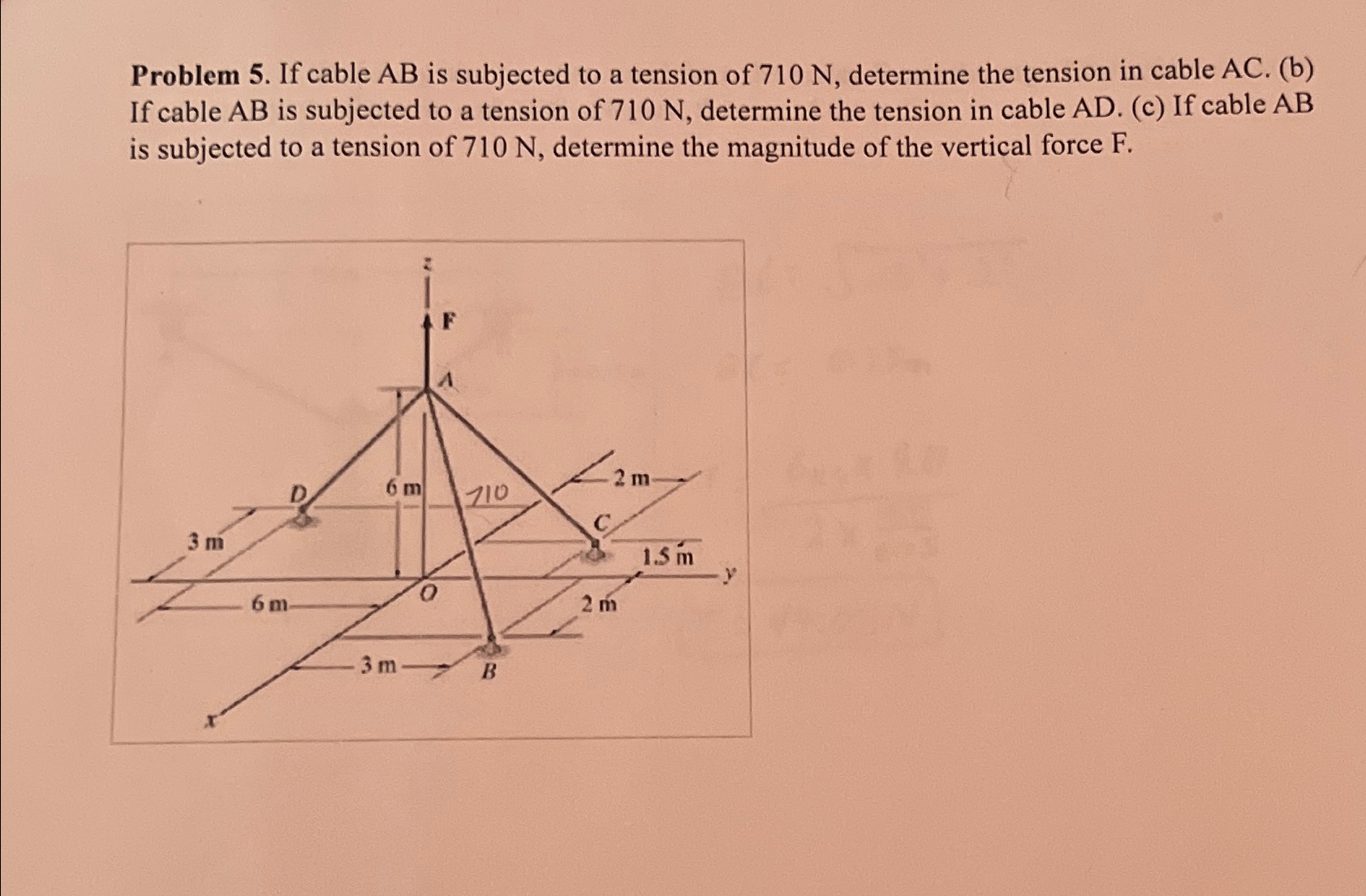

Problem 5. If cable AB is subjected to a tension of 710N, determine the tension in cable AC.(b) If cable AB is subjected to a tension of 710N, determine the tension in cable AD.(c) If cable AB is subjected to a tension of 710N, determine the magnitude of the vertical force F.
Problem 5 . If cable A B is subjected to a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
