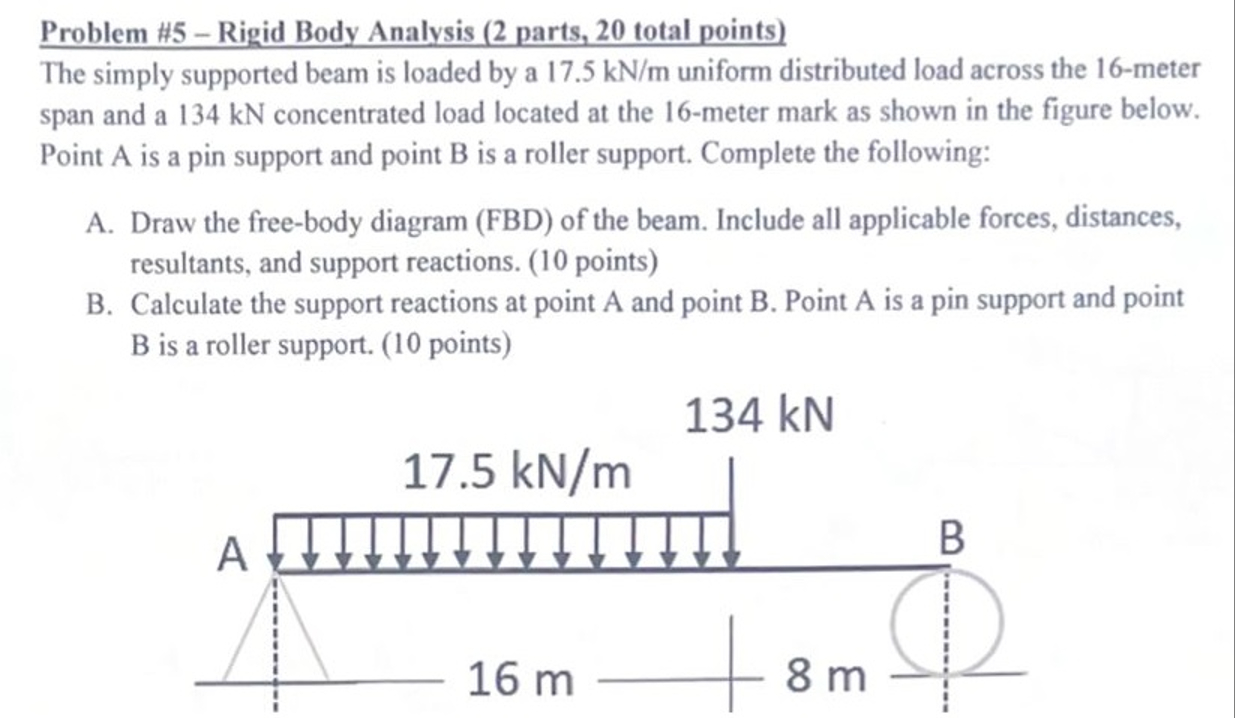

Problem #$5-$ Rigid Body Analysis $(2$ parts, $20$ total points$)$

The simply supported beam is loaded by a $17\mathrm{.}5k\frac{N}{m}$ uniform distributed load across the $16-$meter

span and a $134kN$ concentrated load located at the $16-$meter mark as shown in the figure below.

Point $A$ is a pin support and point $B$ is a roller support. Complete the following:

A$.$ Draw the free$-$body diagram $($FBD$)$ of the beam. Include all applicable forces, distances,

resultants, and support reactions. $(10$ points$)$

B$.$ Calculate the support reactions at point A and point $B.$ Point $A$ is a pin support and point

$B$ is a roller support. $(10$ points$)$
