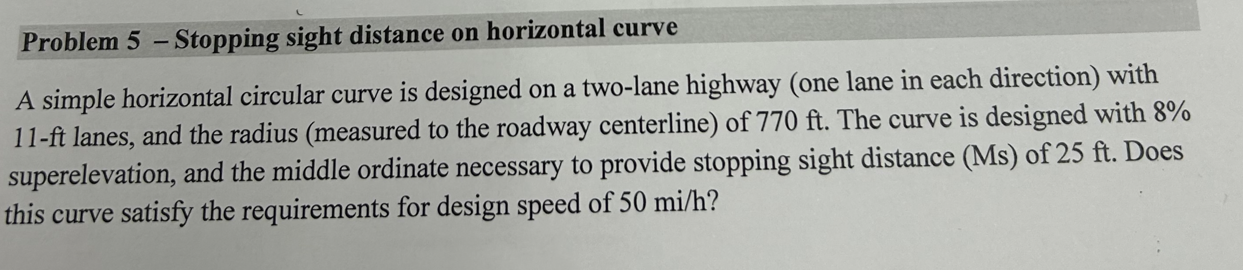

Problem 5- Stopping sight distance on horizontal curve
A simple horizontal circular curve is designed on a two-lane highway (one lane in each direction) with 11- ft lanes, and the radius (measured to the roadway centerline) of 770 ft . The curve is designed with \(8\%\) superelevation, and the middle ordinate necessary to provide stopping sight distance (Ms) of 25 ft . Does this curve satisfy the requirements for design speed of \(50\mathrm{mi}/\mathrm{h}\)?
Problem 5 - Stopping sight distance on horizontal
