Question: Problem 5 The cantilever beam shown below is a W 1 2 x 7 2 of A 9 9 2 steel. There is no lateral

Problem

5

The cantilever beam shown below is a W

12

72

of A

992

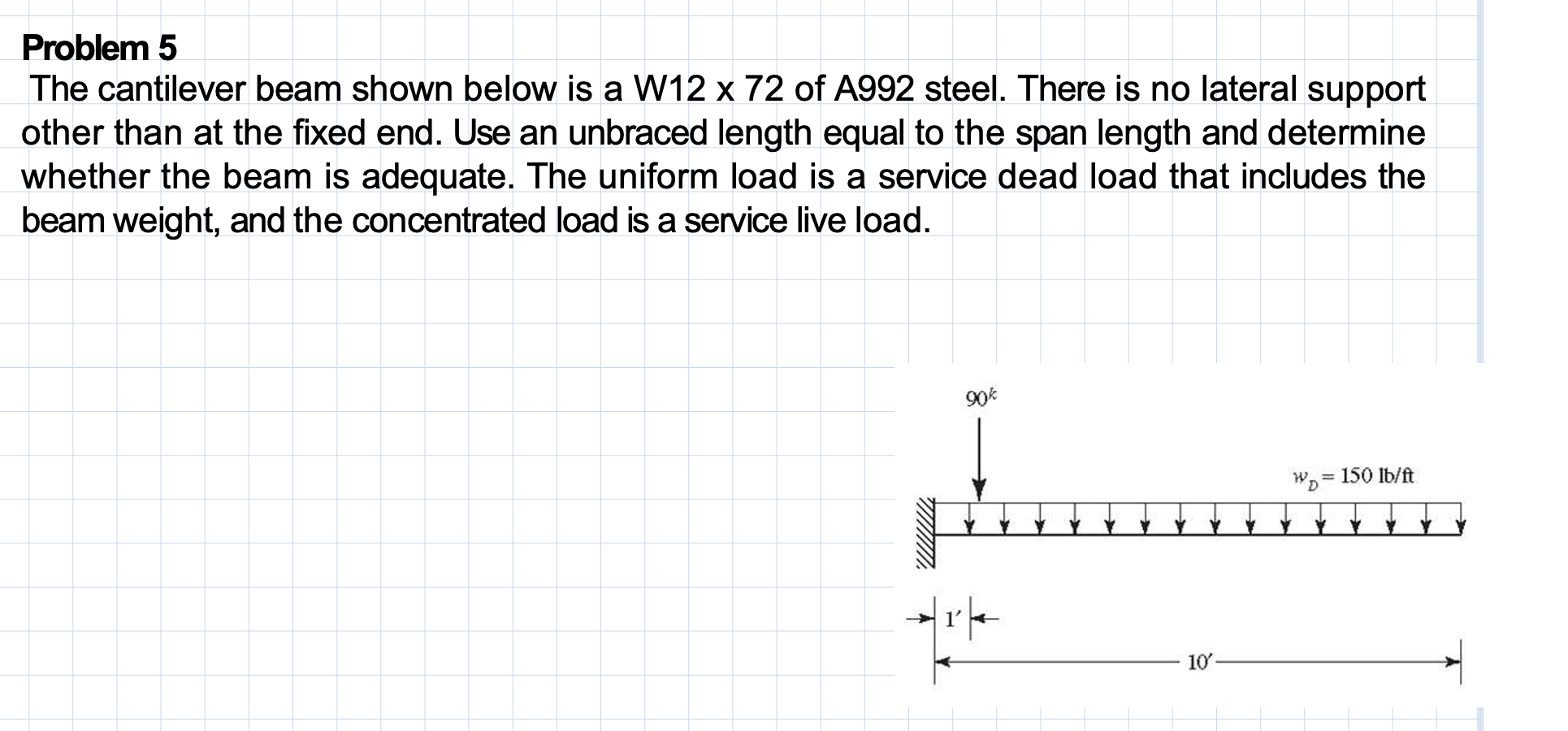

steel. There is no lateral support other than at the fixed end. Use an unbraced length equal to the span length and determine whether the beam is adequate. The uniform load is a service dead load that includes the beam weight, and the concentrated load is a service live load.

Problem 5 The cantilever beam shown below is a W

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
