Question: Problem 5 : Three forces act on the bracket. Determine the magnitude and direction of F 1 so that the resultant force is directed along

Problem 5:

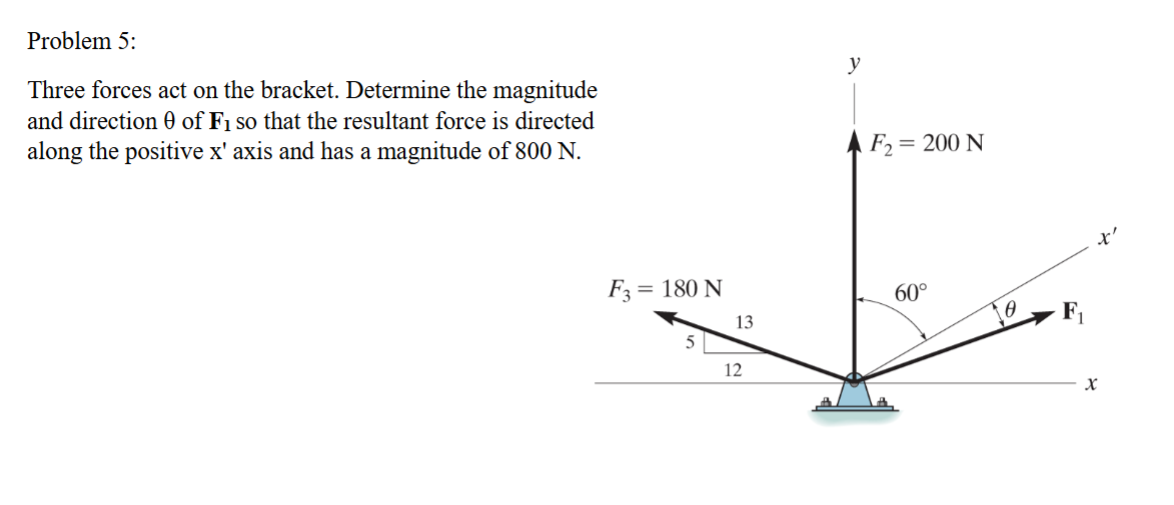

Three forces act on the bracket. Determine the magnitude
and direction of F1 so that the resultant force is directed
along the positive x' axis and has a magnitude of 800 N .
Problem 5 : Three forces act on the bracket.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

*248. Three forces act on the bracket. Determine the magnitude and direction 0 of F1 so that the resultant force is directed along the positive x' axis and has a magnitude of 800 N. 2-49. If F1 = =...

Q:

Three forces act on the bracket. Determine the magnitude and direction θ of F1 so that the resultant force is directed along the positive x' axis and has magnitude FR. Given: F2 = 200 N F3 =...

Q:

Three forces act on the bracket. Determine the magnitude and direction 11 of F so that the resultant force is directed along the positive x axis and has a magnitude of 8kN. 4 kN 15 F 30 6 kN -X

Q:

Three forces act on the bracket. Determine the magnitude and direction of F 1 so that the resultant force is directed along the positive x axis and has a magnitude of 800 N. F3 = 180 N 13 12 y AF=...

Q:

Three forces act on the bracket. Determine the magnitude and direction θ of F1 so that the resultant force is directed along the positive x' axis and has a magnitude of FR. Units Used: kN = 103...

Q:

Three forces act on the bracket. Determine the magnitude and direction of F so that the resultant force is directed along the positive x axis and has a magnitude of 8 kN. 4 kN F 15 30 6 kN

Q:

Three forces act on the bracket as shown in (Figure 1). The resultant force is directed along the positive x' axis and has a magnitude of 8.9 kN. Part A Determine the magnitude of F. Express your...

Q:

Three forces act on the bracket as shown in (Figure 1). The resultant force is directed along the positive x axis and has a magnitude of 800 N. Figure F3=180 N 5 12 13 y F2 = 200 N 60 Express your...

Q:

Express your answer to three significant figures and include the appropriate units. Three forces act on the bracket as shown in ( Figure 1 ) . The resultant force is directed along the positive x '...

Q:

Three forces acts on the bracket. Determine the magnitude and direction ? of F1 so that the resultant force is directed along the positive x axis and has a magnitude of 1 k N. F= 450 N 45 F=200 N 30
