Question: Problem 5 . ( Topic Area # 3 , 5 ) The vertical shear on the beam is 1 0 0 0 lbs . -

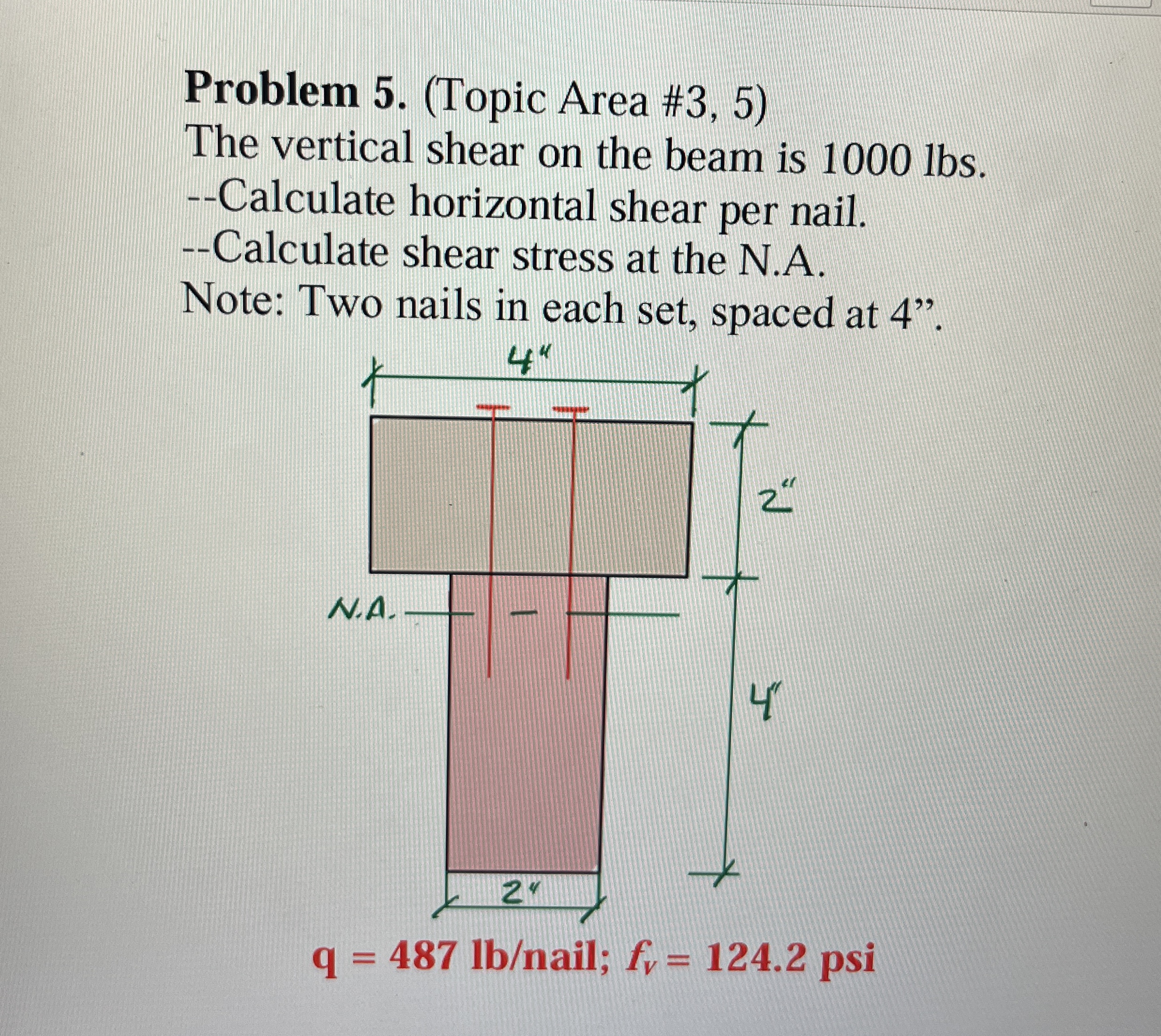

Problem 5.(Topic Area #3,5)
The vertical shear on the beam is 1000 lbs.
--Calculate horizontal shear per nail.
--Calculate shear stress at the N.A.
Note: Two nails in each set, spaced at 4".
Problem 5 . ( Topic Area # 3 , 5 ) The vertical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
