Question: Problem 5 . Use moment - distribution method to solve the following frame problem ( no side - sway ) Assuming El is a constant

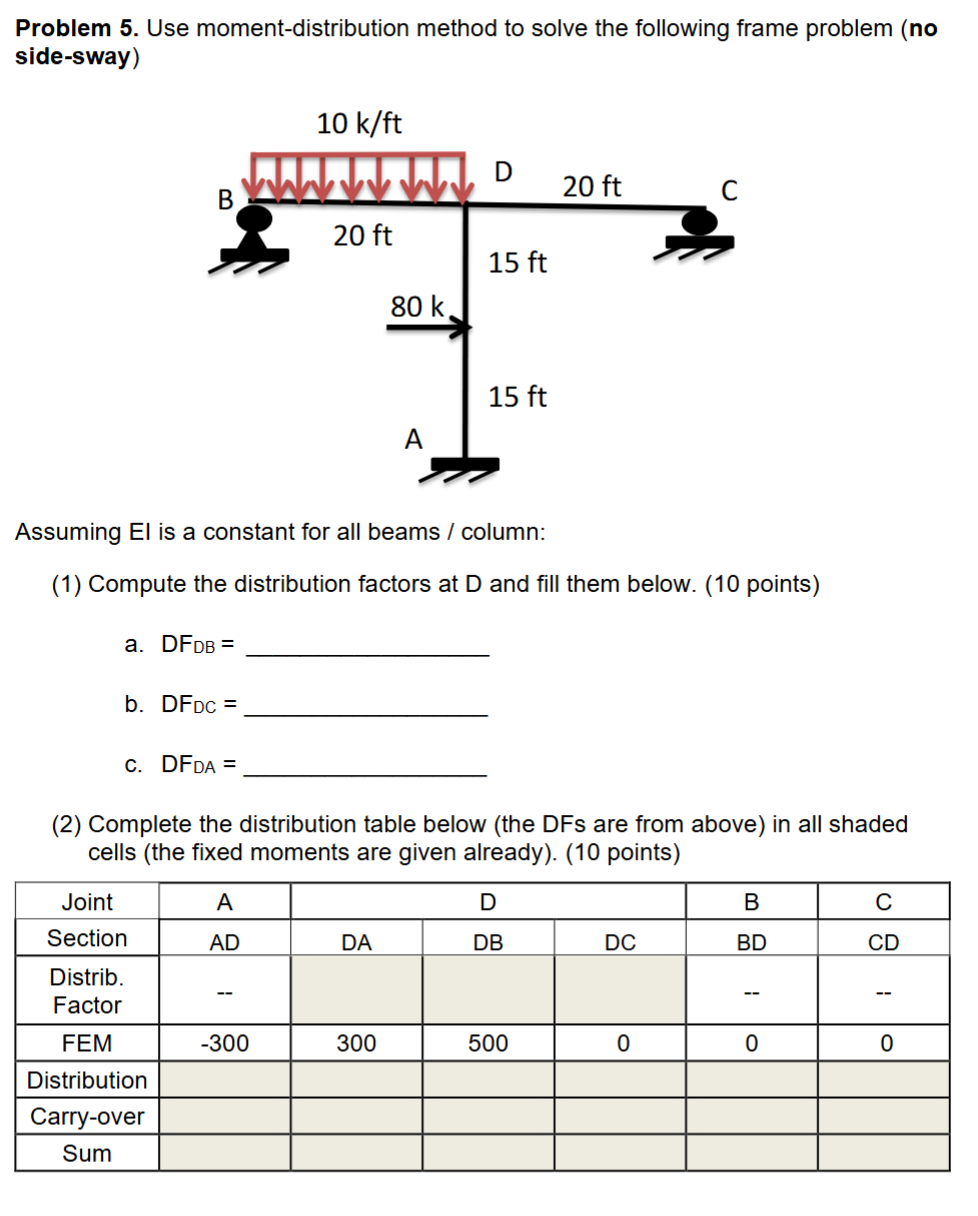

Problem 5. Use moment-distribution method to solve the following frame problem (no side-sway)
Assuming El is a constant for all beams / column:
(1) Compute the distribution factors at D and fill them below. (10 points)
a.\(\mathrm{DF}_{\mathrm{DB}}=\)
b.\(\mathrm{DF}_{\mathrm{DC}}=\)
c.\( D F_{D A}=\)
(2) Complete the distribution table below (the DFs are from above) in all shaded cells (the fixed moments are given already).(10 points)
Problem 5 . Use moment - distribution method to
