Question: Problem 5 : Water flows through the pipe contraction shown in the figure below. For the given 0 . 2 - m difference in the

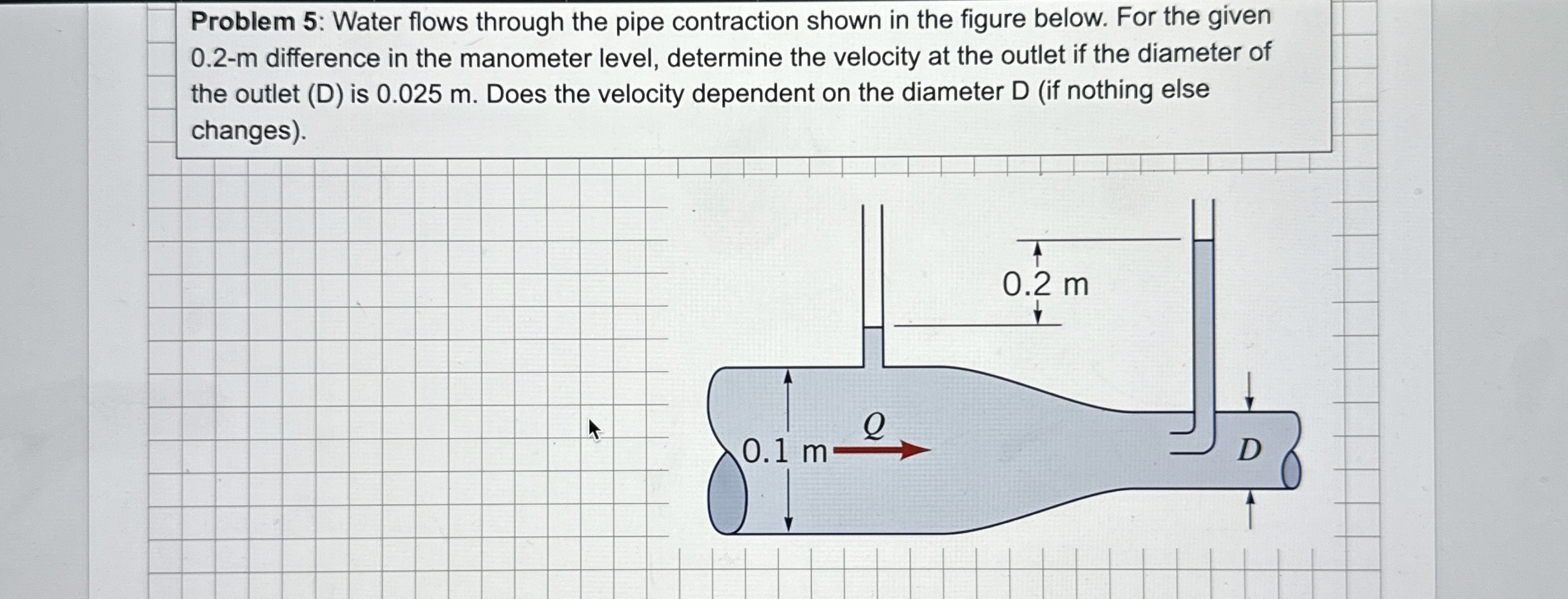

Problem 5: Water flows through the pipe contraction shown in the figure below. For the given
0.2-m difference in the manometer level, determine the velocity at the outlet if the diameter of
the outlet (D) is 0.025 m . Does the velocity dependent on the diameter D(if nothing else
changes).
Problem 5 : Water flows through the pipe

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
