Question: Problem 6 ( 1 0 points ) : A long solid cylinder of radius 0 . 8 m hinged at point A is used as

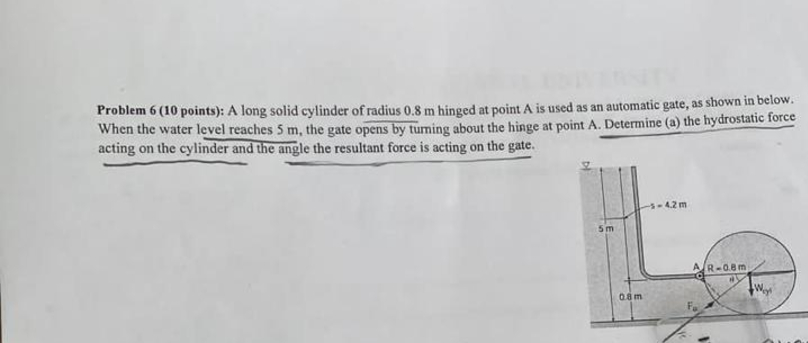

Problem 6(10 points): A long solid cylinder of radius 0.8 m hinged at point A is used as an automatic gate, as shown in below. When the water level reaches 5 m , the gate opens by tuming about the hinge at point A. Determine (a) the hydrostatic force acting on the cylinder and the angle the resultant force is acting on the gate.
Problem 6 ( 1 0 points ) : A long solid cylinder
