Question: Problem 6 ( 1 2 pts ) : The three - hinged spandrel arch is subjected to the uniform load of 2 0 kNm .

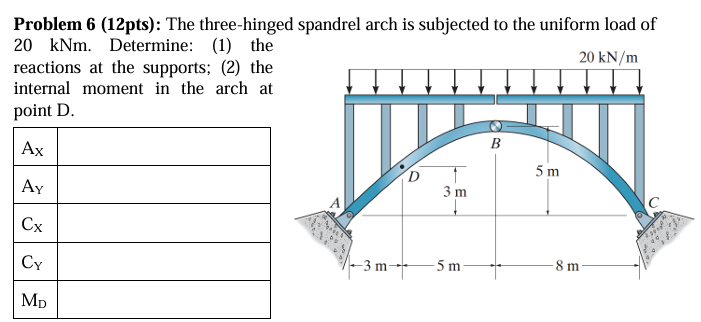

Problem 6(12pts): The three-hinged spandrel arch is subjected to the uniform load of 20 kNm. Determine: (1) the reactions at the supports; (2) the internal moment in the arch at point D.
Problem 6 ( 1 2 pts ) : The three - hinged

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
