Question: Problem ( 6 ) : [ 3 Points ] Replace the loading system acting on the post by an equivalent resultant force and couple moment

Problem (6):
[3 Points]

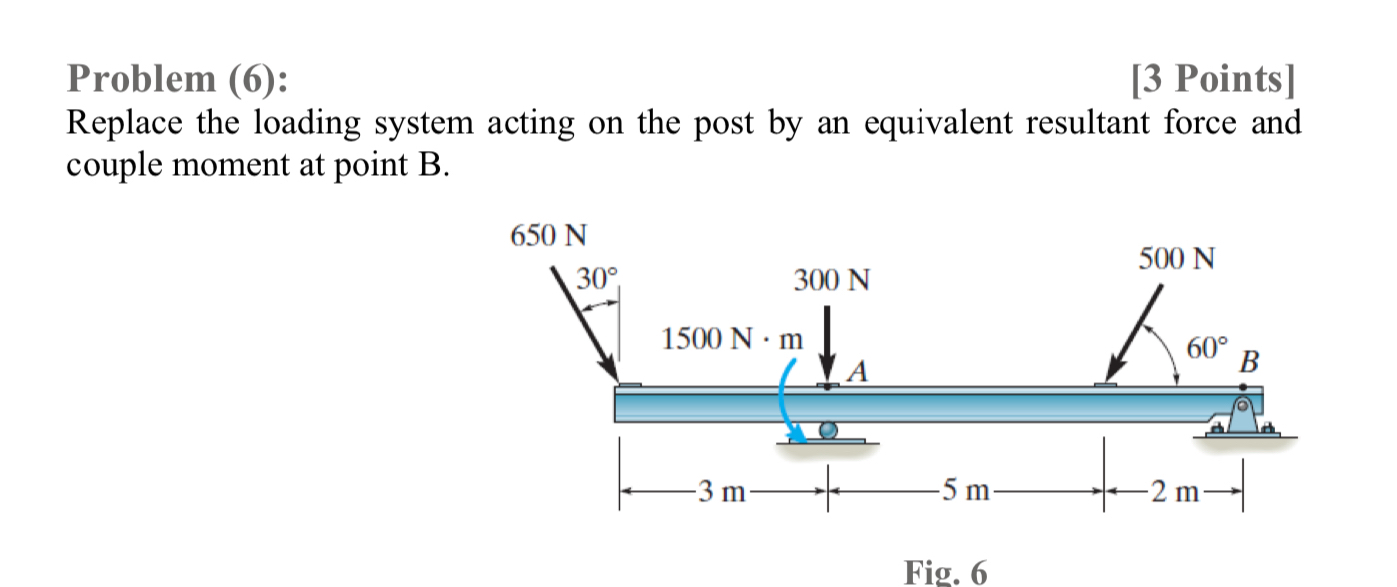

Replace the loading system acting on the post by an equivalent resultant force and
couple moment at point B.
Fig. 6
Problem ( 6 ) : [ 3 Points ] Replace the loading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

ENGG 202 - Engineering Statics - Winter 2024 Worksheet 4 - Couple Moment, Force-couple Systems, Centroids, and Distributed Loading\ Question 3: (recommended time - 15 minutes)\ Replace the loading...

Q:

1. Determine the magnitude of the resultant force Fx and its direction, measured clockwise from the positive u axis. 701 30 459 5-300 N 500 N 325 N 2. If the resultant force acting on the bracket is...

Q:

Please solve these questions in details and fully explaination. Thanks so much in advance. Replace the loading system acting on the beam by the equivalent resultant forces ( in Cartesian vector form...

Q:

Part A Replace the loading system acting on the beam by an equivalent resultant force and couple moment at point O Suppose that F1 = 550 N , F2 = 200 N , and Determine the magnitude of the resultant...

Q:

Clearly show your work for each problem ( 2 problems and 1 bonus ) . Box your final solution ( make sure you use proper significant figures and include units ) . A 5 m beam ( AD ) is shown below with...

Q:

7. Replace the loading system acting on the post by an equivalent resultant force and couple moment at point B. 650 N 1500N- 8. Determine the x, y, z components of reaction at the fixed wall A. The...

Q:

7. Replace the loading system acting on the post by an equivalent resultant force and couple moment at point SON SOON WN SON 8. Determine the x, y, 2 components of reaction at the fixed wall A. The...

Q:

Replace the loading system acting on the post by an equivalent resultant force and couple moment at point P. 60 lb 3 4 P O 30 lb 1 ft 3 ft 2 ft 40 lb X

Q:

Replace the loading system acting on the post by an equivalent resultant force and couple moment at point O. 60 lb 3 4 P O 30 lb 1 ft 3 ft 2 ft 40 lb X

Q:

Replace the loading system acting on the post by an equivalent resultant force and couple moment at point O. Given: F1 = 30 lb a = 1 ft d = 3 F2 = 40 lb b = 3 ft e = 4 F3 = 60 lb c = 2 ft F3 F2
