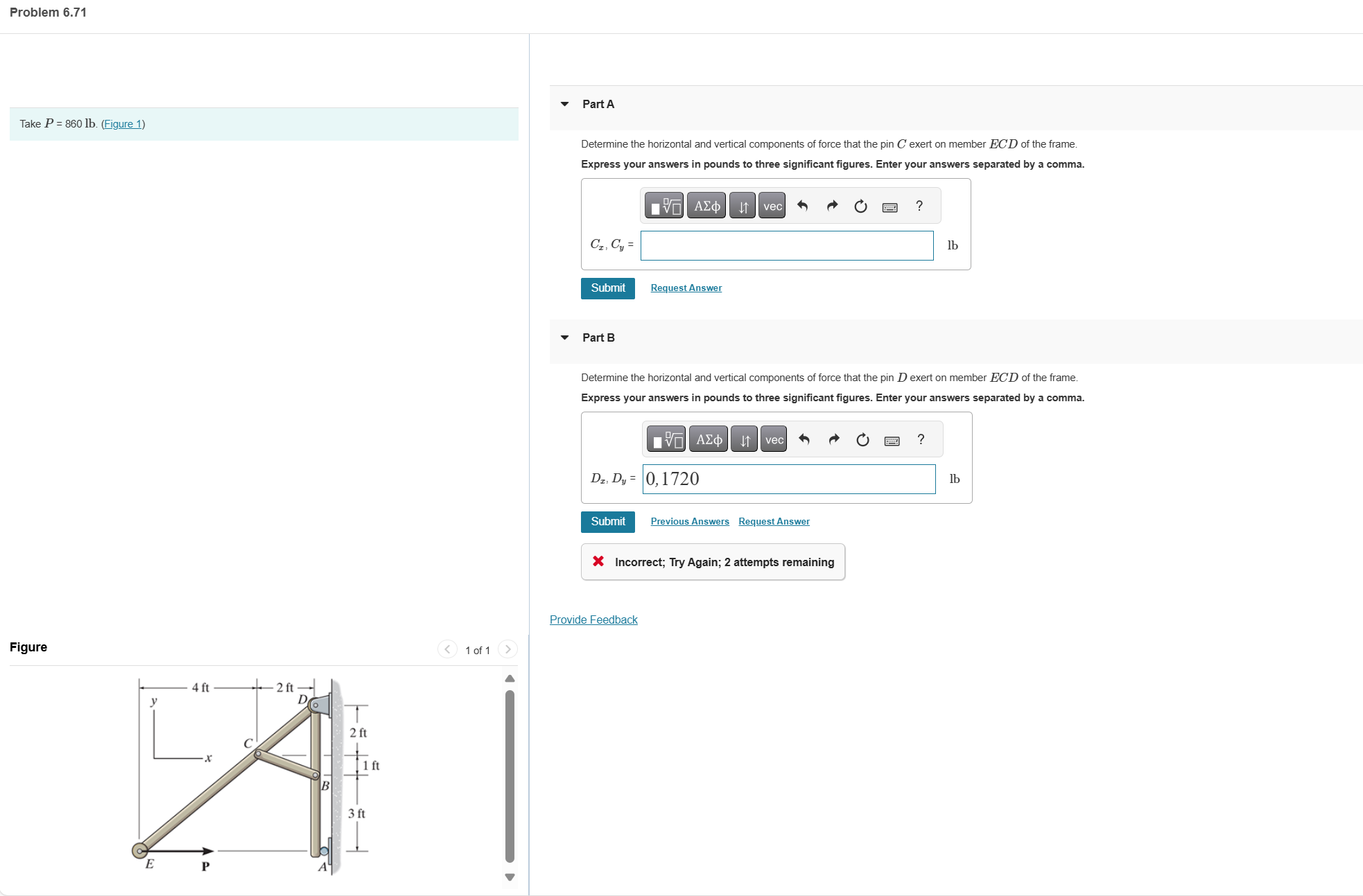

Problem $6\mathrm{.}71$

Take $\backslash ($ P$=860\backslash$mathrm$\{$lb$\}\backslash ).($Figure $1)$

Part A

Determine the horizontal and vertical components of force that the pin $\backslash ($ C $\backslash )$ exert on member $\backslash ($ E C D $\backslash )$ of the frame.

Express your answers in pounds to three significant figures. Enter your answers separated by a comma.

Part B

Determine the horizontal and vertical components of force that the pin $\backslash ($ D $\backslash )$ exert on member $\backslash ($ E C D $\backslash )$ of the frame.

Express your answers in pounds to three significant figures. Enter your answers separated by a comma.

$\backslash (\backslash$times $\backslash )$ Incorrect; Try Again; $2$ attempts remaining

Provide Feedback

Figure
