Question: Problem 6 . 8 2 The compound beam is fixed at E and supported by rollers at A and B . There are pins at

Problem 6.82

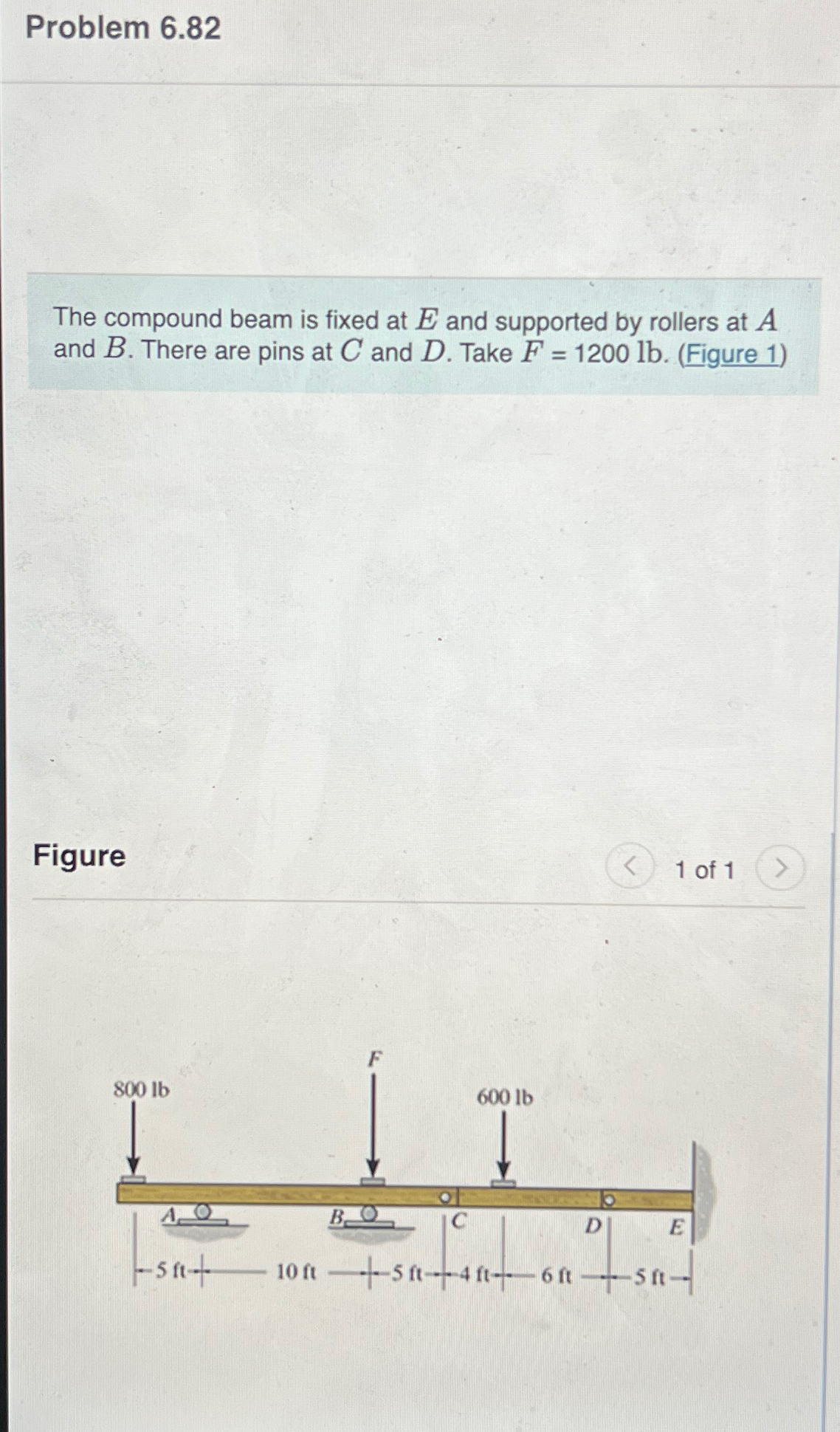

The compound beam is fixed at E and supported by rollers at A and B. There are pins at C and D. Take F=1200lb.(Figure 1)
Figure
1 of 1
Find Ay, By, Ex,Ey, and moment of E
Problem 6 . 8 2 The compound beam is fixed at E

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

The compound beam is fixed at E and supported by rollers at A and B. Determine the reactions at these supports. There are pins at C and D. 800 lb --5ft-+ 1200 lb B. C 600 lb D 10 ft-5 ft 4 ft 6 ft- E...
