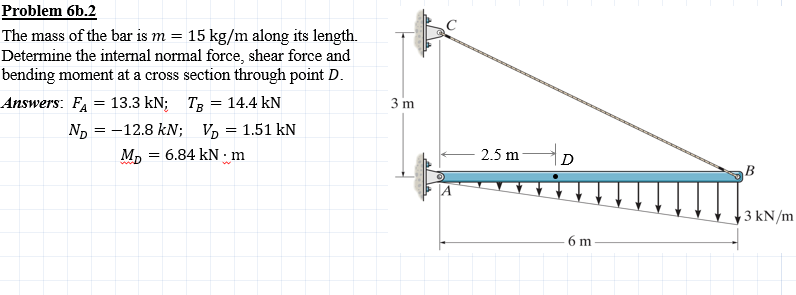

Problem $6$b$.2$: Show the FBDS

The mass of the bar is m$=15$k$($g$)/($m$)$ along its length.

Determine the internal normal force, shear force and

bending moment at a cross section through point D$.$

Answers:

F$\_($A$)=13\mathrm{.}3$kN;$,$T$\_($B$)=14\mathrm{.}4$kN

N$\_($D$)=-12\mathrm{.}8$kN;$,$V$\_($D$)=1\mathrm{.}51$kN

$,$M$\_($D$)=6\mathrm{.}84$kN$*$m
