Question: PROBLEM 6 : The shear force in a beam V ( x ) is given in the figure. Determine the equation for V ( x

PROBLEM 6:

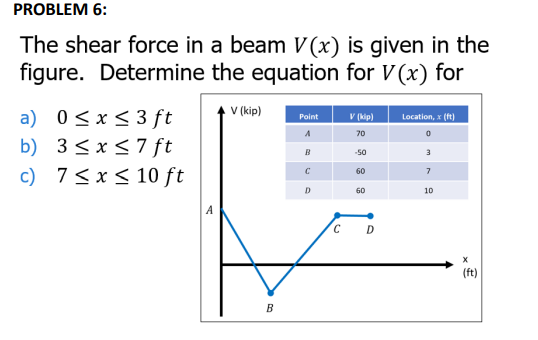

The shear force in a beam V(x) is given in the
figure. Determine the equation for V(x) for
a)0x3ft
b)3x7ft
c)7x10ft
PROBLEM 6 : The shear force in a beam V ( x ) is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
