Question: Problem 6.78 For the frame and loading shown, determine the components of all forces acting on member DECF. B A 450 N 250 mm D

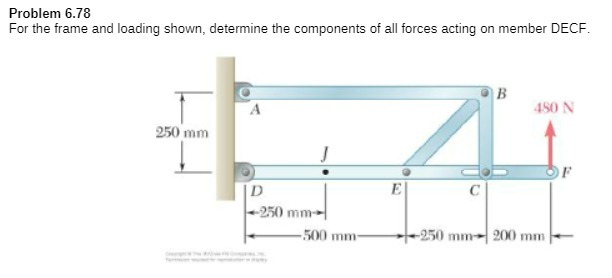

Problem 6.78 For the frame and loading shown, determine the components of all forces acting on member DECF. B A 450 N 250 mm D E C 250 mm 500 mm 250 mm- 200 mm

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Problem 6.78 For the frame and loading shown, determine the components of all forces acting on member DECF. B A 450 N 250 mm C D F D E C -250 mm- 500 mm 250 mm- 200 mm

Solve Prob. 6.82 assuming that the 180-N load is replaced with a clockwise couple of magnitude 60 N m applied to member CEF at point F. Problem 6.83: For the frame and loading shown, determine the...

For the frame and loading shown, determine the components of all forces acting on member ABCD. S0 mm 200 mm S0 mm 100 mn 150 mm 4. 45 IS0 N

For the frame and loading shown, determine the components of all forces acting on member DECF. NIN 250 mm -00 200

For the frame and loading shown, determine the components of all forces acting on member ABD. 500 500 250 375 3KN 250 250 250 Dimensions in mm

For the frame and loading shown, determine the components of the forces acting on member CDE at C and D. 320 mm 100 N 30 B 160 mm 30 D. 160 mm 240 mm 80 mm

For the frame and loading shown, determine the components of the forces acting on member ABC at B and C. SON E 192 N 60 120 mm 150 mm 120 mm 150 mm-

Solve Prob. 6.78 assuming that the 480-N load is replaced with a clockwise couple of magnitude 400 N m applied to member DECF at point F. Problem 6.78: For the frame and loading shown, determine the...
