Question: Problem 7 a ) Identify all zero force members in the following truss. ( Hint: I see three. ) b ) Using the method of

Problem7

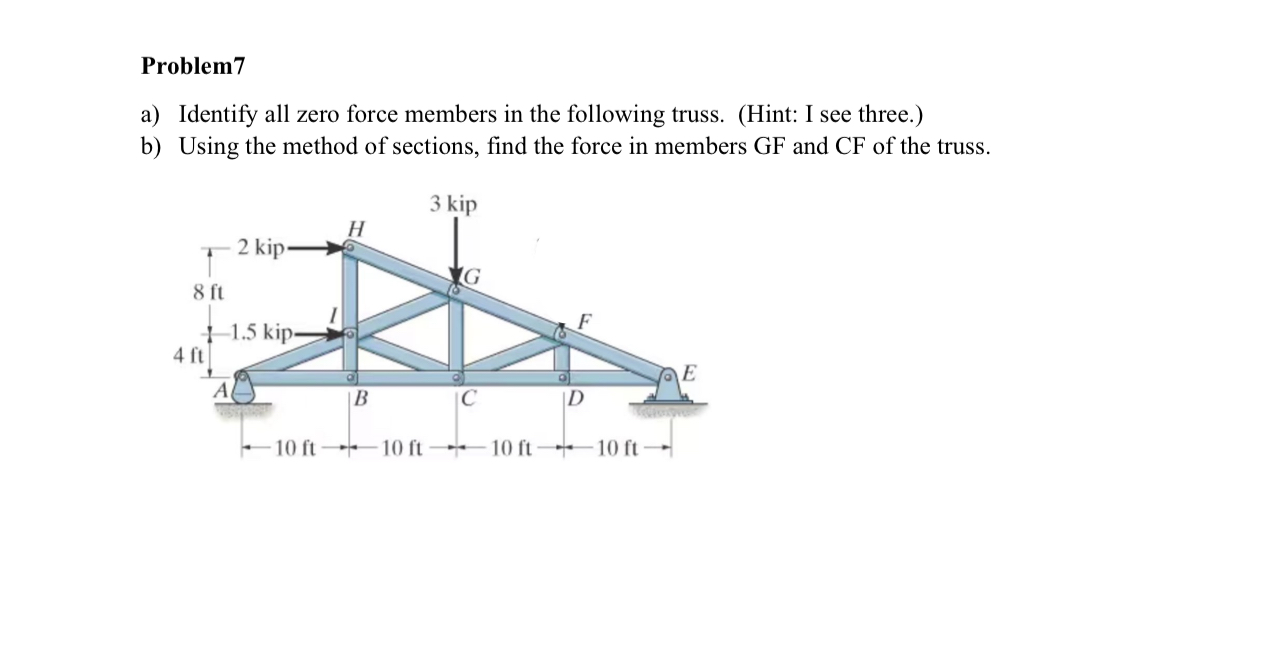

a) Identify all zero force members in the following truss. (Hint: I see three.)
b) Using the method of sections, find the force in members GF and CF of the truss.
Problem 7 a ) Identify all zero force members in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
