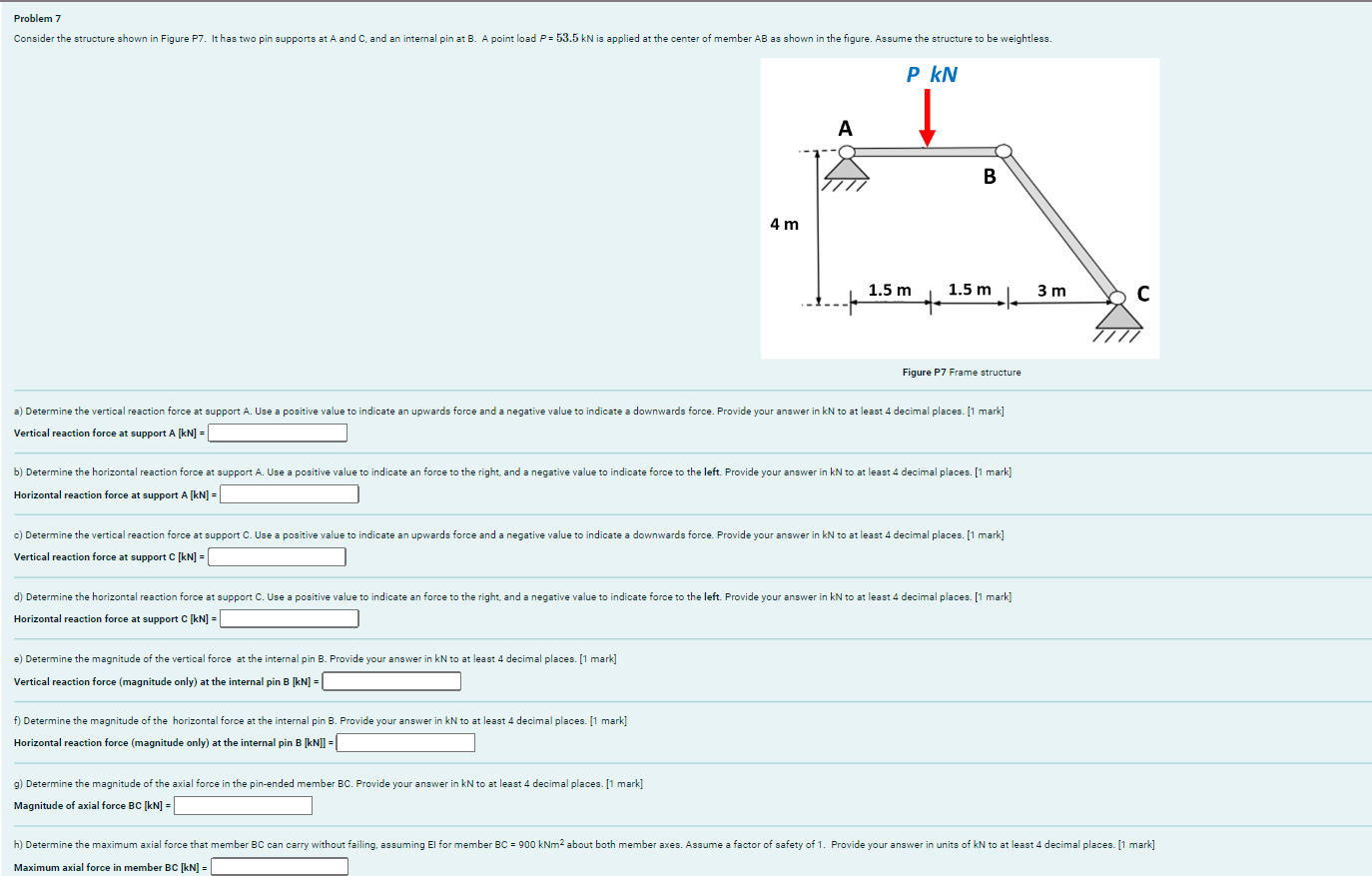

Problem $7$

Figure P$7$ Frame structure

Vertical reaction force at support

Horizontal reaction force at support A $[kN]=$

Vertical reaction force at support $C[kN]=$

Horizontal reaction force at support $c[kN]=|$

e$)$ Determine the magnitude of the vertical force at the internal pin B$.$ Provide your answer in $kN$ to at least $4$ decimal places. $[1$ mark$]$

Vertical reaction force $($magnitude only$)$ at the internal pin $B[kN]=|$

f$)$ Determine the magnitude of the horizontal force at the internal pin B$.$ Provide your answer in kN to at least $4$ decimal places. $[1$ mark$]$

Horizontal reaction force $($magnitude only$)$ at the internal pin $B[kN]$

g$)$ Determine the magnitude of the axial force in the pin$-$ended member $BC.$ Provide your answer in $kN$ to at least $4$ decimal places. $[1$ mark$]$

Magnitude of axial force $BC[kN]=$

Maximum axial force in member $BC[kN]=$
