Question: Problem 8 ( 1 point ) A soil element is shown in Figure 8 . Determine the following: a . Maximum and minimum principal stresses.

Problem 8(1 point)

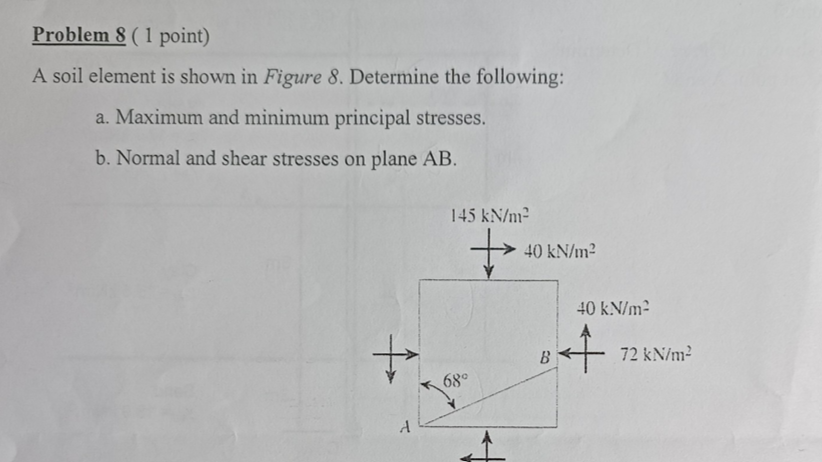

A soil element is shown in Figure 8. Determine the following:
a. Maximum and minimum principal stresses.
b. Normal and shear stresses on plane \( A B \).
Problem 8 ( 1 point ) A soil element is shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
