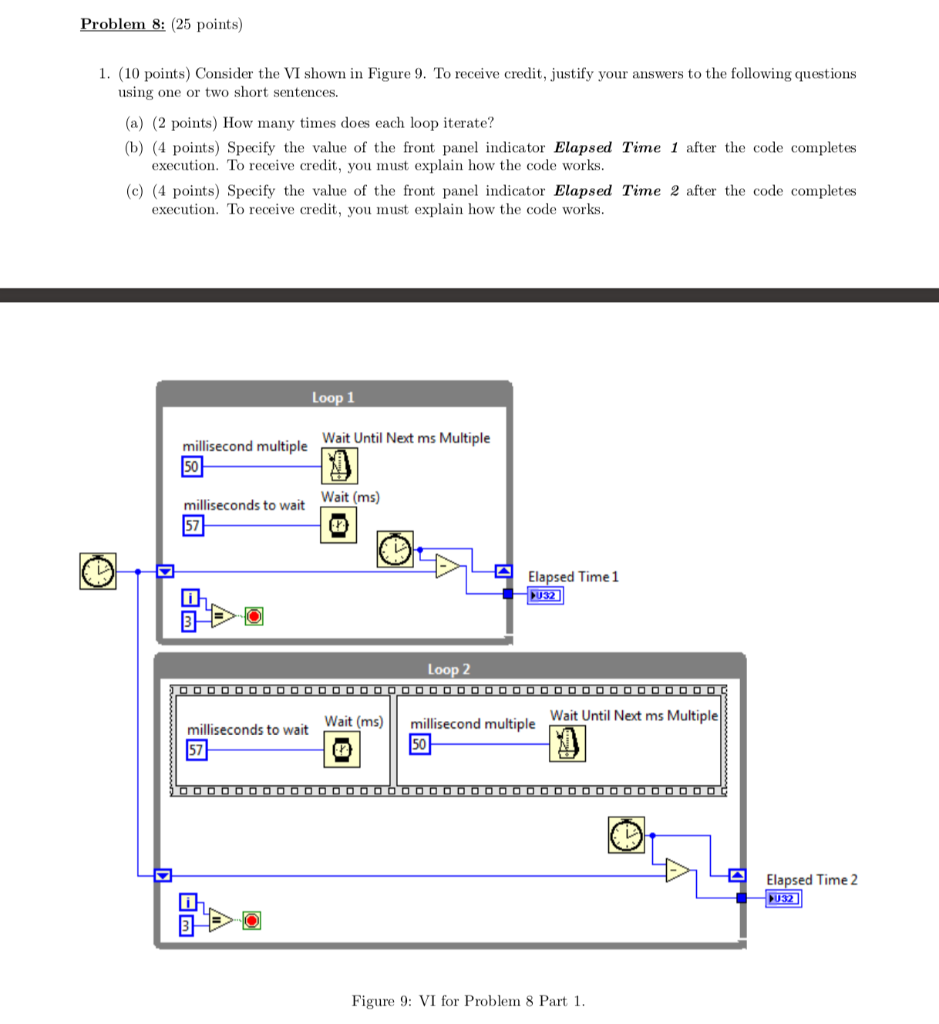

Problem 8: (25 points) 1. (10 points) Consider the VI shown in Figure 9. To receive credit, justify your answers to the following questions using one or two short sentences. (a) (2 points) How many times does each loop iterate? (b) (4 points) Specify the value of the front panel indicator Elapsed Time 1 after the code completes execution. To receive credit, you must explain how the code works (c) (4 points) Specify the value of the front panel indicator Elapsed Time 2 after the code completes execution. To receive credit, you must explain how the code works Loop 1 Wait Until Next ms Multiple millisecond multiple 50 Wait (ms) milliseconds to wait 57 Elapsed Time 1 U32 Loop 2 milliseconds to wait Wait (ms) mlsecond multiple 57 Wi Until Next ms Multiple 50 Elapsed Time 2 Figure 9: VI for Problem 8 Part 1 Problem 8: (25 points) 1. (10 points) Consider the VI shown in Figure 9. To receive credit, justify your answers to the following questions using one or two short sentences. (a) (2 points) How many times does each loop iterate? (b) (4 points) Specify the value of the front panel indicator Elapsed Time 1 after the code completes execution. To receive credit, you must explain how the code works (c) (4 points) Specify the value of the front panel indicator Elapsed Time 2 after the code completes execution. To receive credit, you must explain how the code works Loop 1 Wait Until Next ms Multiple millisecond multiple 50 Wait (ms) milliseconds to wait 57 Elapsed Time 1 U32 Loop 2 milliseconds to wait Wait (ms) mlsecond multiple 57 Wi Until Next ms Multiple 50 Elapsed Time 2 Figure 9: VI for Problem 8
