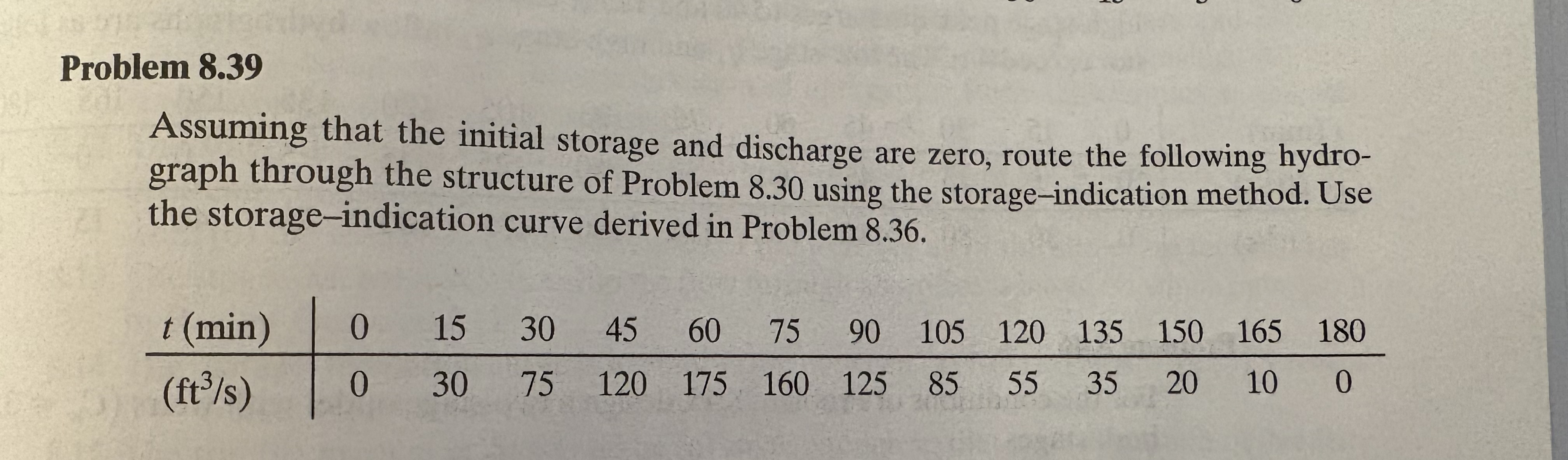

Problem $8\mathrm{.}39$

Assuming that the initial storage and discharge are zero, route the following hydro$-$

graph through the structure of Problem $8\mathrm{.}30$ using the storage$-$indication method. Use

the storage$-$indication curve derived in Problem $8\mathrm{.}36.$ Problem $8\mathrm{.}30$

A surface$-$storage facility has a rectangular bottom $($L $=175$ ft$,$ W $=75$ ft$),$ with vertical ends $($i$.$e$.$ the length remains constant$)$ and the sides with slopes of $5$:$1($h:v$).$ The facility is used to control runoff from a residential area. Determine the stage$-$storage$-$discharge relationship assuming that outflow from the basin is controlled by a weir with a $6-$ft length and C $=3\mathrm{.}1.$ The weir invert is the same as the elevation of the bottom of the storage basin.

Problem $8\mathrm{.}36$

Derive and plot the storage$-$indication curve for the system described in Problem $8\mathrm{.}30.$ Plot the storage$-$discharge relationship on the same figure. Assume $$t $=15$ minutes.
