Question: PROBLEM 8 . 5 8 Four forces are applied to a W 8 x 2 8 rolled - steel beam as shown. Determine the principal

PROBLEM 8.58

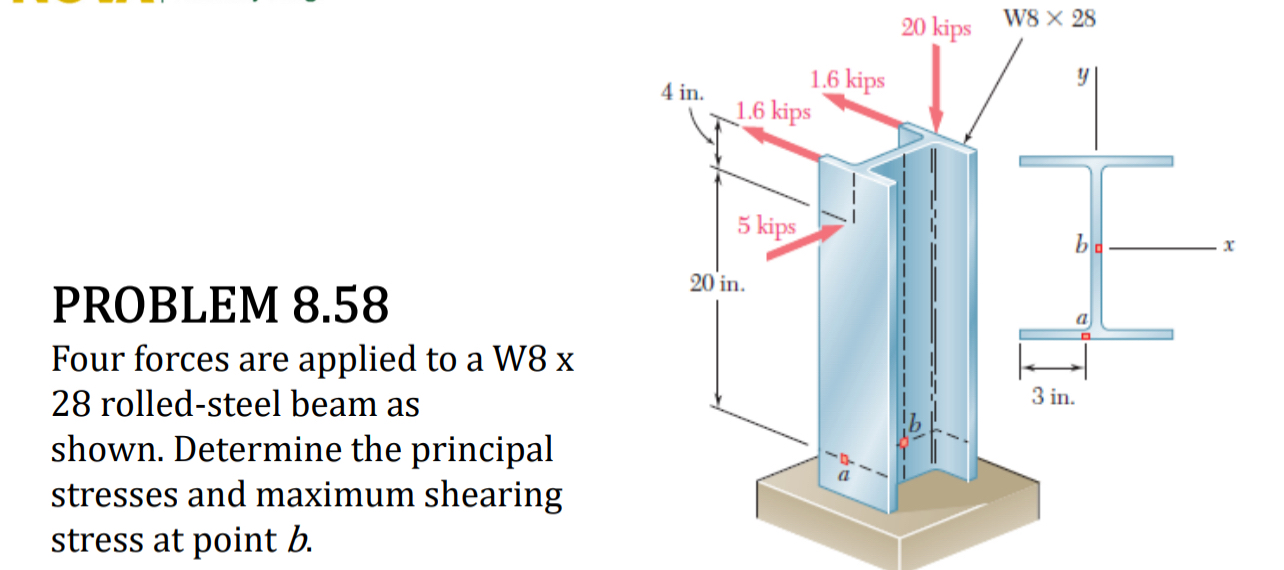

Four forces are applied to a W8 x 28 rolled-steel beam as shown. Determine the principal stresses and maximum shearing stress at point b.
PROBLEM 8 . 5 8 Four forces are applied to a W 8

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
