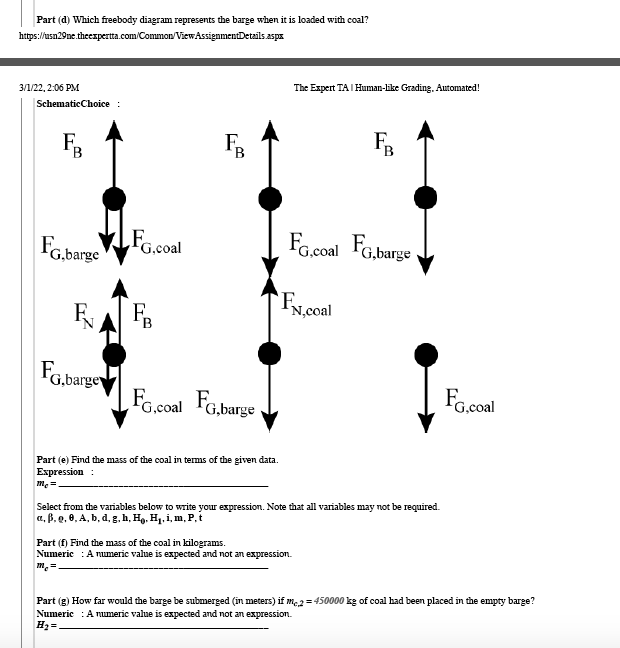

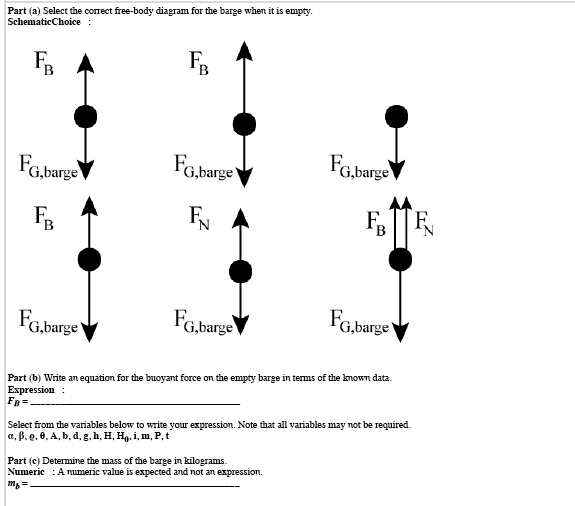

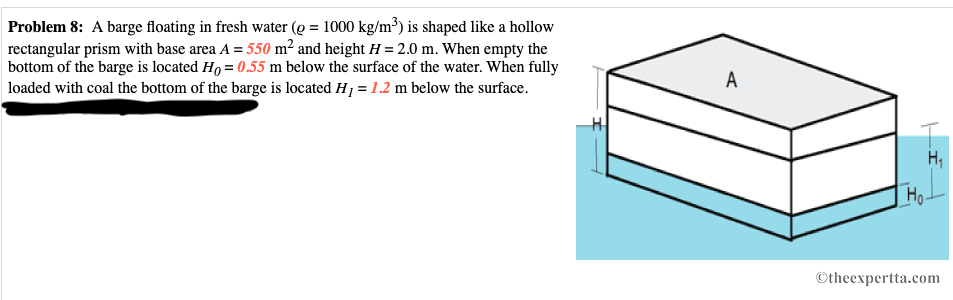

Problem 8: A barge floating in fresh water (o = 1000 kg/m ) is shaped like a hollow rectangular prism with base area A = 550 m and height H = 2.0 m. When empty the bottom of the barge is located Ho = 0.55 m below the surface of the water. When fully loaded with coal the bottom of the barge is located Hy = 1.2 m below the surface. A T Ho Otheexpertta.comPart (a) Select the correct free-body diagram for the barge when it is empty. SchematicChoice : Fo Fo,barge FG.barge Fo,barge 44 FB FB FV FG.barge Fo, barge Fo,barge Part (b) Write an equation for the buoyant force on the empty barge in terms of the known data. Expression : Select from the variables below to write your expression. Note that all variables may not be required. , B. Q. 0. A, b. d, g. h, H, Ho. i, m, P, t Part (c) Determine the mass of the barge in kilograms Numeric : A numeric value is expected and not an expression.Part (d) Which freebody diagram represents the barge when it is loaded with coal? https://usn29me.theexpertta.com/Common/ViewAssignmentDetails aspx 3/1/22, 2:06 PM The Expert TA | Human-like Grading, Automated! SchematicChoice FB FB FG.barge FG.coal Fo.coal Fo,barge FB FN,coal Fo,barge Fo .coal Fa,barge Fo.coal Part (e) Find the mass of the coal in terms of the given data. Expression Me = Select from the variables below to write your expression. Note that all variables may not be required. a, B. Q. 0. A, b. d, g, h, H Him, P. t Part (f) Find the mass of the coal in kilograms. Numeric : A numeric value is expected and not an expression. m. = Part (g) How far would the barge be submerged (in meters) if me2 = 450000 ke of coal had been placed in the empty barge? Numeric : A numeric value is expected and not an expression
