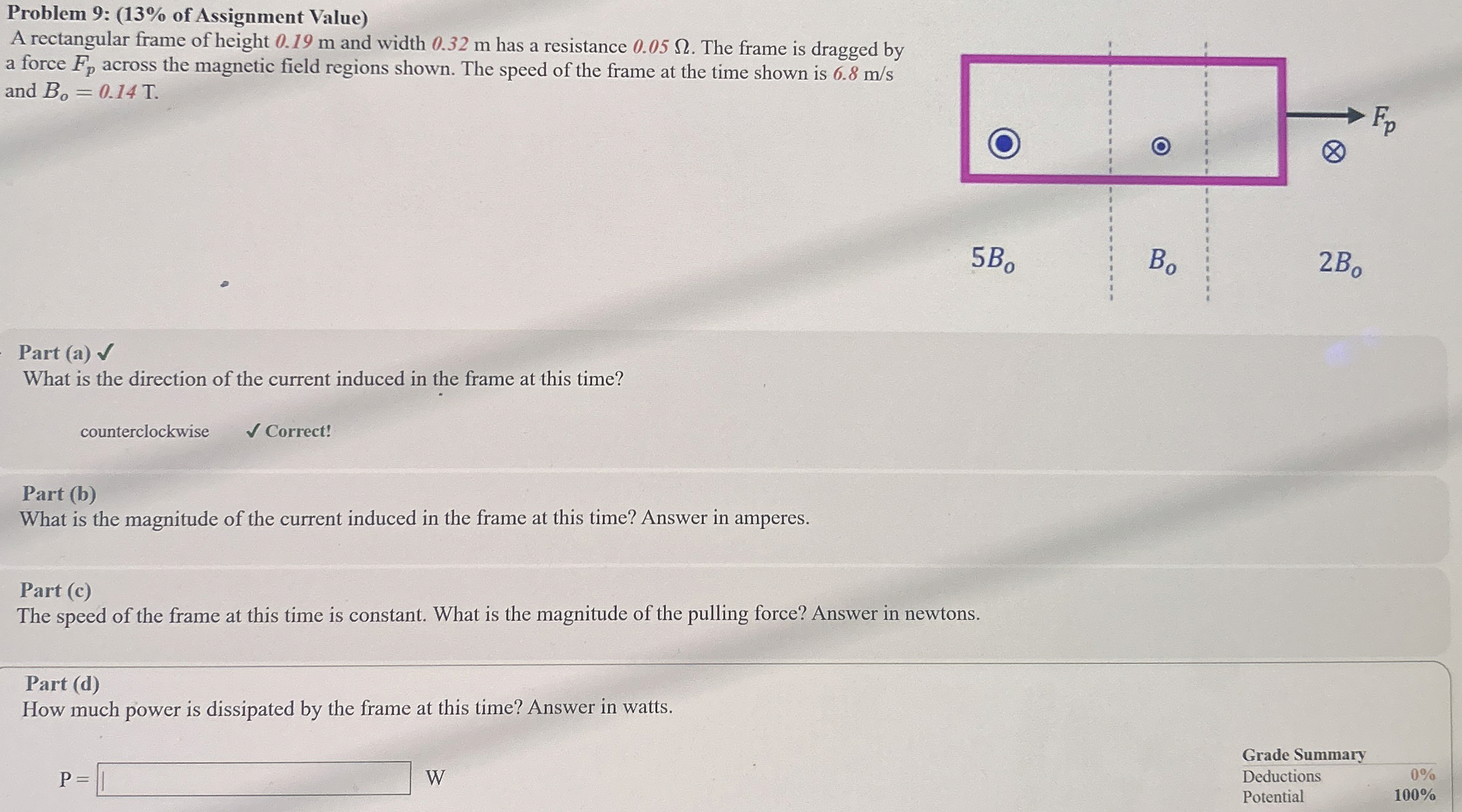

Problem $9$: $(13\%$ of Assignment Value$)$

A rectangular frame of height $0\mathrm{.}19$ m and width $0\mathrm{.}32$ m has a resistance $0\mathrm{.}05.$ The frame is dragged by a force $F_p$ across the magnetic field regions shown. The speed of the frame at the time shown is $6\mathrm{.}8\frac{m}{s}$ and $B_o=0\mathrm{.}14T.$

Part $($a$)$

What is the direction of the current induced in the frame at this time?

counterclockwise

$$ Correct!

Part $($b$)$

What is the magnitude of the current induced in the frame at this time? Answer in amperes.

Part $($c$)$

The speed of the frame at this time is constant. What is the magnitude of the pulling force? Answer in newtons.

Part $($d$)$

How much power is dissipated by the frame at this time? Answer in watts.

$P=W$

$\backslash$table$[[$Grade Summary,$],[$Deductions$,0\%$
