Question: PROBLEM 9 . 2 0 For the beam and loading shown, determine the reaction at the roller support. ] = 0 , y = 0

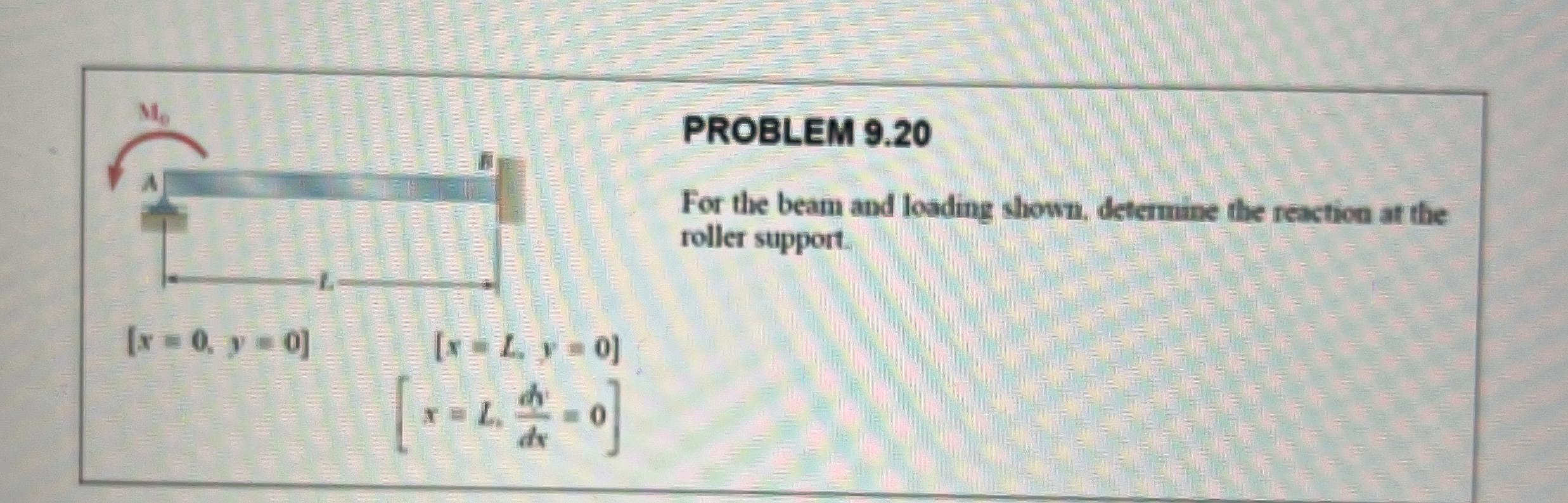

PROBLEM 9.20
For the beam and loading shown, determine the reaction at the roller support.
]=0,y=0
x=L,y=[0]=L,ddx=[0
PROBLEM 9 . 2 0 For the beam and loading shown,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
