Question: Problem 9 Switch Initially, the switch in the figure to the right is in position a a b and capacitors C2 and C3 are uncharged.

Problem 9 Switch Initially, the switch in the figure to the

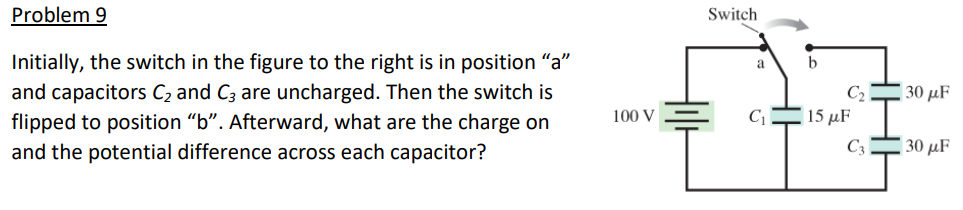

Problem 9 Switch Initially, the switch in the figure to the right is in position "a" a b and capacitors C2 and C3 are uncharged. Then the switch is C2 30 HF flipped to position "b". Afterward, what are the charge on 100 V C1 15 UF and the potential difference across each capacitor? C3 30 UF

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
