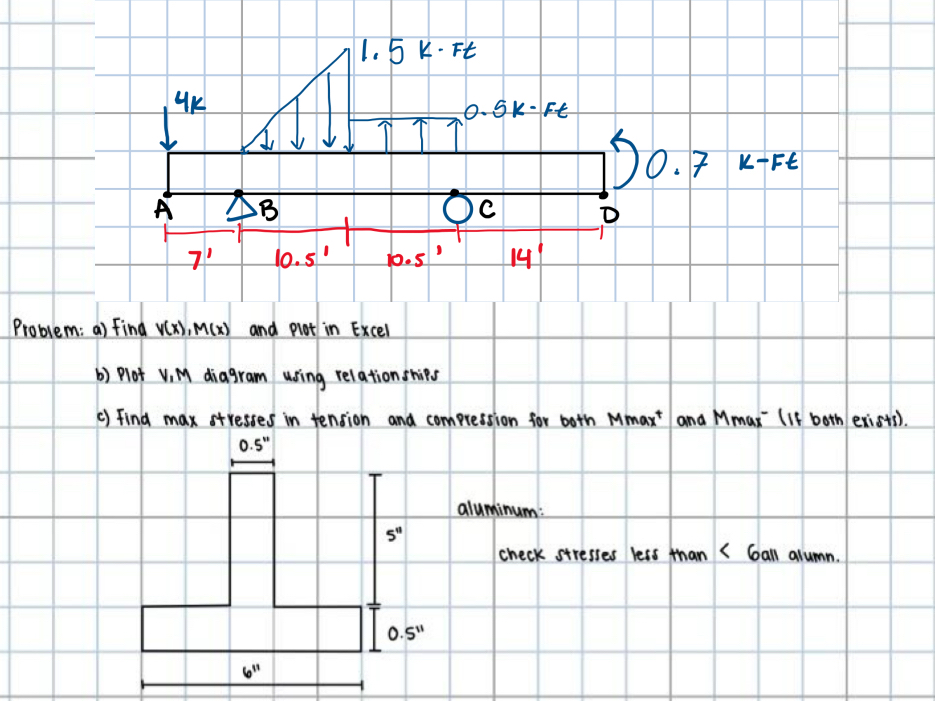

Question: Problem: a ) FinD v ( x ) , M ( x ) and plot in Excel b ) Plot V , M diagram using

Problem: a) FinD v(x),M(x) and plot in Excel
b) Plot V,M diagram using relationships
c) Find the max stresses intention and compression for both M Max + and M Max -
Problem: a ) FinD v ( x ) , M ( x ) and plot in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
