Problem A:

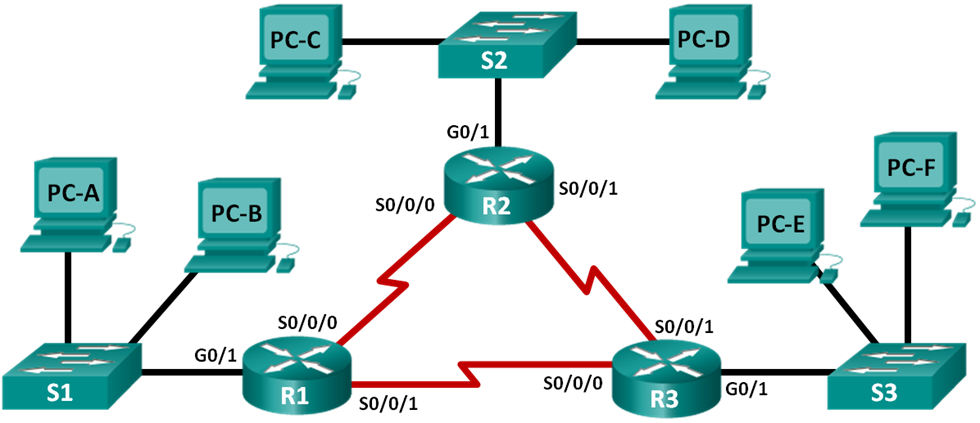

You have been given the $192\mathrm{.}168\mathrm{.}20\mathrm{.}0/24$ network address to subnet, with the following topology.

Step $1$: Determine the number of subnets in Network Topology A$.$

Question $1$

$2$

Points

How many subnets are there?

Remember:

All LANs connected to Routers are to be counted as a subnet

Router$1($R$1)$ to Router$2($R$2)$ is to be counted as a subnet.

Router$2($R$2)$ to Router$3($R$3)$ is to be counted as a subnet.

Router$1($R$1)$to Router$3($R$3)$ is to be counted as a subnet.

Add your answer

Integer, decimal, or E notation allowed

Question $2$

$2$

Points

How many bits should you borrow to create the required number of subnets?

Add your answer

Integer, decimal, or E notation allowed

Question $3$

$3$

Points

How many usable host addresses per subnet are in this addressing scheme?

Note: Usable host addresses $=2($h$)-2$ where h is the number of host bits left in the new subnet mask

Add your answer

Integer, decimal, or E notation allowed

Question $4$

$2$

Points

What is the new subnet mask in dotted decimal format?

Note: Type full subnet mask

Blank $1$

Blank $1$

Add your answer

Dotted decimal

Binary

Original subnet mask $=255\mathrm{.}255\mathrm{.}255\mathrm{.}0$

$11111111111111111111111100000000$

New subnet mask $=???.???.???.???$

Question $5$

$2$

Points

What is the new CIDR notation for each new subnet? $($original network $=/24)$

Note: Just type number

Add your answer

Integer, decimal, or E notation allowed

Question $6$

$3$

Points

What is the increment between subnets?

Add your answer

Integer, decimal, or E notation allowed

Question $7$

$2$

Points

How many subnets are available for future use?

Add your answer

Integer, decimal, or E notation allowed

Step $2$: Record the subnet information.

Note: This is a template format you can sketch to practice and duplicate $($in the answers below$).$ Not all rows will be used in this assignment

Subnet Number

Subnet Address

First Usable Host Address

Last Usable Host Address

Broadcast Address

$0(1$st$)$

$1(2$nd$)$

$2(3$rd$)$

$3(4$th$)$

$4(5$th$)$

$5(6$th$)$

$6(7$th$)$

$7(8$th$)$

Question $8$

$6$

Points

$1$st subnet $>$ also called $$Subnet $0$

Subnet Address

Blank $1$

First Usable $($Valid$)$ Host Address

Blank $2$

Last Usable $($Valid$)$ Host Address

Blank $3$

Broadcast Address

Blank $4$

Blank $1$

Add your answer

Blank $2$

Add your answer

Blank $3$

Add your answer

Blank $4$

Add your answer

Question $9$

$6$

Points

$2$nd subnet $>$ also called $$Subnet $1$

Subnet Address

Blank $1$

First Usable $($Valid$)$ Host Address

Blank $2$

Last Usable $($Valid$)$ Host Address

Blank $3$

Broadcast Address

Blank $4$

Blank $1$

Add your answer

Blank $2$

Add your answer

Blank $3$

Add your answer

Blank $4$

Add your answer

Question $10$

$6$

Points

$3$rd subnet $>$ also called $$Subnet $2$

Subnet Address

Blank $1$

First Usable $($Valid$)$ Host Address

Blank $2$

Last Usable $($Valid$)$ Host Address

Blank $3$

Broadcast Address

Blank $4$

Blank $1$

Add your answer

Blank $2$

Add your answer

Blank $3$

Add your answer

Blank $4$

Add your answer

Question $11$

$6$

Points

$4$th subnet $>$ also called $$Subnet $3$

Subnet Address

Blank $1$

First Usable $($Valid$)$ Host Address

Blank $2$

Last Usable $($Valid$)$ Host Address

Blank $3$

Broadcast Address

Blank $4$

Blank $1$

Add your answer

Blank $2$

Add your answer

Blank $3$

Add your answer

Blank $4$

Add your answer

Question $12$

$6$

Points

$5$th subnet $>$ also called $$Subnet $4$

Subnet Address

Blank $1$

First Usable $($Valid$)$ Host Address

Blank $2$

Last Usable $($Valid$)$ Host Address

Blank $3$

Broadcast Address

Blank $4$

Blank $1$

Add your answer

Blank $2$

Add your answer

Blank $3$

Add your answer

Blank $4$

Add your answer

Question $13$

$6$

Points

$6$th subnet $>$ also called $$Subnet $5$

Subnet Address

Blank $1$

First Usable $($Valid$)$ Host Address

Blank $2$

Last Usable $($Valid$)$ Host Address

Blank $3$

Broadcast Address

Blank $4$

Blank $1$

Add your answer

Blank $2$

Add your answer

Blank $3$

Add your answer

Blank $4$

Add your answer

Question $14$

$5$

Points

Future Use:

Identify the Subnet Addresses for each of the future user subnets

$7$th Subnet Address

Blank $1$

$8$th Subnet Address

Blank $2$

Blank $1$

Add your answer

Blank $2$

Add your answer

Re$-$Review your borrowed bits and subnetting tables $($if needed$)$ to answer the question above.
