$[$Problem adapted from $o.$ Kurt Gramoll CC BY NC$-$SA $4\mathrm{.}0]$

Please enter your ID number from your instructor and click to generate your problem

$$

$$

Problem Statement

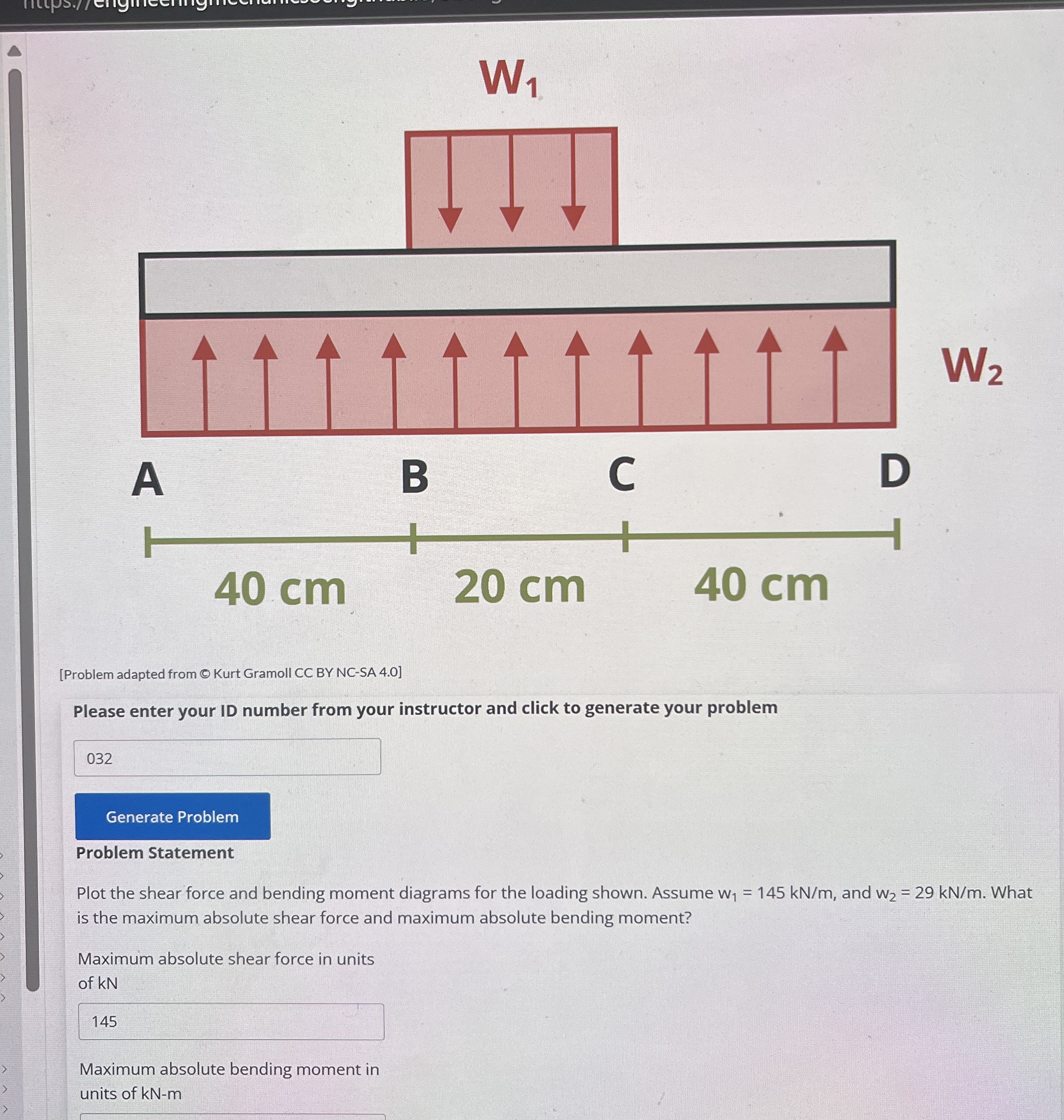

Plot the shear force and bending moment diagrams for the loading shown. Assume $w_1=145k\frac{N}{m},$ and $w_2=29k\frac{N}{m}.$ What is the maximum absolute shear force and maximum absolute bending moment?

Maximum absolute shear force in units

of kN

$q,$

Maximum absolute bending moment in units of $kN-m$
