Question: Problem: For the propped cantilever shown below, use discontinuity functions to determine the support reactions and expressions for the slope and deflection at any x

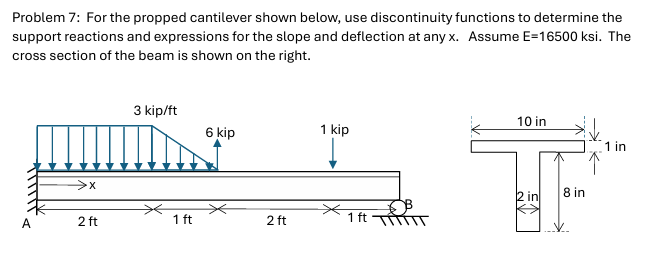

Problem: For the propped cantilever shown below, use discontinuity functions to determine the
support reactions and expressions for the slope and deflection at any x. Assume E=16500 ksi. The
cross section of the beam is shown on the right.
Problem: For the propped cantilever shown below,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
