Question: Problem H 0 3 - 0 1 [ Points: 1 / 3 ] A beam is subjected to the two concentrated loads. Assuming that the

Problem H

03 - 01 [

Points:

1 / 3]

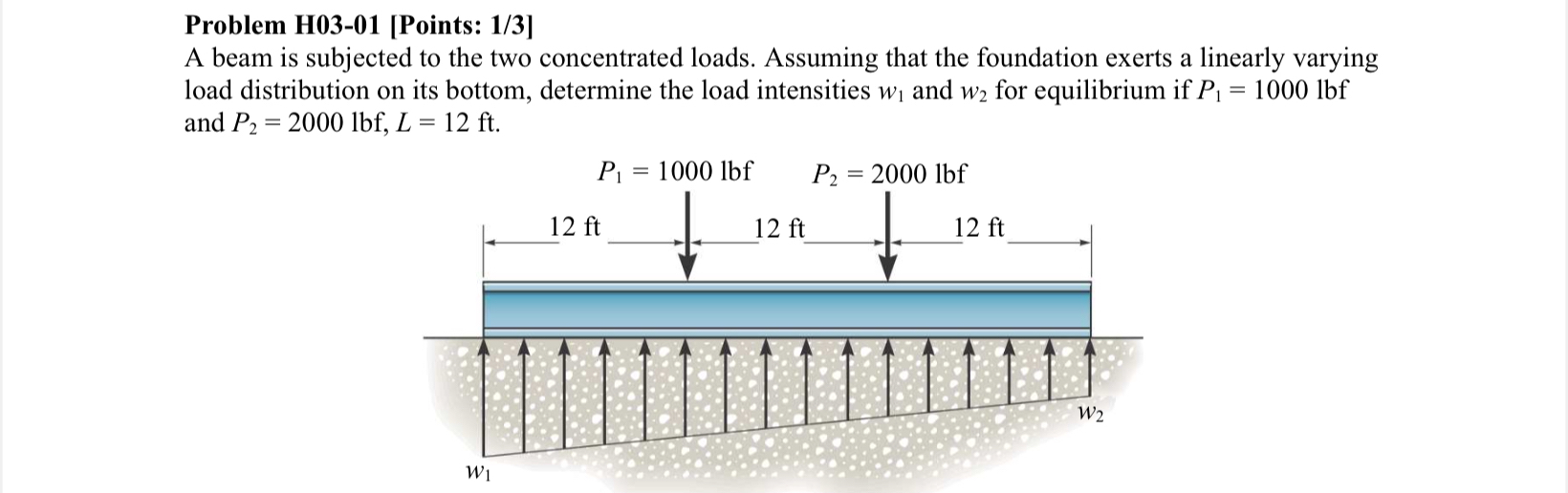

A beam is subjected to the two concentrated loads. Assuming that the foundation exerts a linearly varying load distribution on its bottom, determine the load intensities

w_{1}

and

w_{2}

for equilibrium if

P_{1} = 1000 l b f

and

P_{2} = 2000 l b f, L = 12 f t .

Please DRAW and WRITE all steps for the solution. Thanks so much

Problem H 0 3 - 0 1 [ Points: 1 / 3 ] A beam is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
